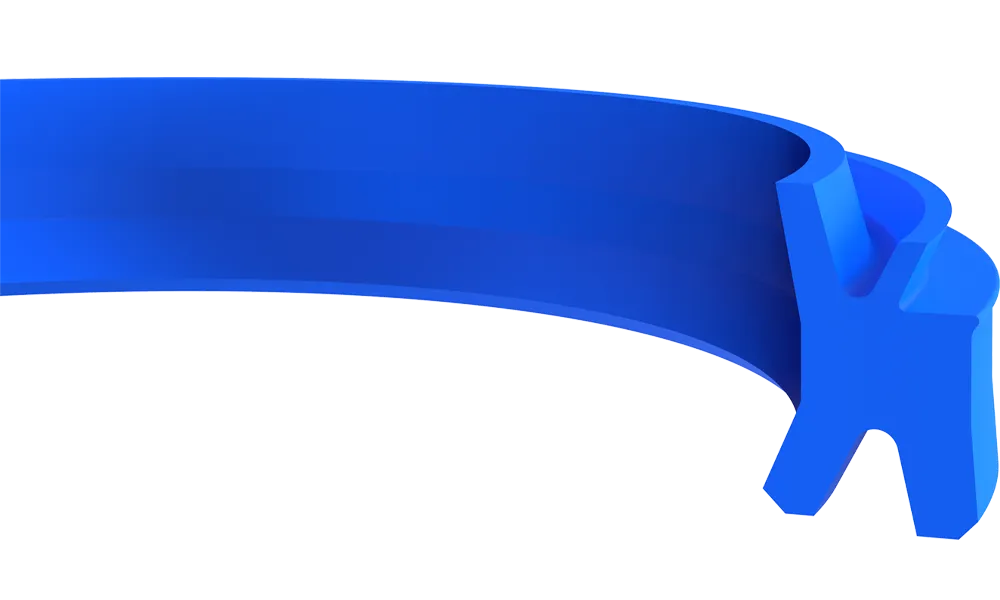

K107 Wiper Seal
K107 is TPU double wiper with a static sealing lip as an addition to the wiping lip. The dynamic lips of K107 double wiper are designed with a radius in order to optimize the oil film on counter running surface and the seal geometry is designed to relief hydrodynmaic pressure in the system.
Technical details & request a quoteAdvantages
- Superior wiping performance
- Build-up of hydrodynamic pressure is avoided with notch design
- Thing oil film due to double lip design
- No twisting in the housing
- Used in heavy conditions by the good tear and rupture properties of PU material
- Leakage preventing exterior static sealing lip design
- Easy installation
Applications
- Construction machinery
- Mobile machinery
- Cranes
- Industrial cylinders
- Forklifts
- Cylinders that work in open air environment
Standard Sizes
23 sizes
| PRODUCT | D (f7) | D (H9) | D1 (H10) | L (+0.2/-0) | L1 | H | MATERIAL | KASTAŞ CODE |
|---|---|---|---|---|---|---|---|---|
| K107-020 | 20 | 26 | 24.6 | 4 | 6 | 7 | PU9201 | 10002046 |
| K107-020/1 | 20 | 28 | 26 | 4 | 6 | 7 | PU9201 | 10002048 |
| K107-025 | 25 | 33 | 31 | 4 | 6 | 7 | PU9201 | 10002050 |
| K107-030 | 30 | 38 | 36 | 4 | 6 | 7 | PU9201 | 10002052 |
| K107-032 | 32 | 40 | 38 | 4 | 6 | 7 | PU9201 | 10002054 |
| K107-035 | 35 | 43 | 41 | 4 | 6 | 7 | PU9201 | 10002055 |
| K107-036 | 36 | 44 | 42 | 5 | 7 | 8 | PU9201 | 10002057 |
| K107-040 | 40 | 48 | 46 | 4 | 6 | 7 | PU9201 | 10002058 |
| K107-040/1 | 40 | 50 | 48 | 6.3 | 8.3 | 9 | PU9201 | 10002060 |
| K107-045 | 45 | 53 | 51 | 4 | 6 | 7 | PU9201 | 10002061 |
| K107-046 | 46 | 54 | 52 | 4 | 6 | 7 | PU9201 | 10002063 |
| K107-048 | 48 | 58 | 55 | 6.3 | 8.3 | 9 | PU9201 | 10002064 |
| K107-050 | 50 | 60 | 57 | 6.3 | 8.3 | 9 | PU9201 | 10002065 |
| K107-055 | 55 | 65 | 62 | 6.3 | 8.3 | 9 | PU9201 | 10002067 |
| K107-060 | 60 | 70 | 67 | 6.3 | 8.3 | 9 | PU9201 | 10002068 |
| K107-060/1 | 60 | 68 | 66 | 4 | 6 | 7 | PU9201 | 10002069 |
| K107-065 | 65 | 75 | 73 | 6.3 | 8.3 | 9 | PU9201 | 10002070 |
| K107-070 | 70 | 80 | 77 | 6.3 | 8.3 | 9 | PU9201 | 10002071 |
| K107-075 | 75 | 85 | 82 | 6.3 | 8.3 | 9 | PU9201 | 10002072 |
| K107-080 | 80 | 90 | 87 | 6.3 | 8.3 | 9 | PU9201 | 10002073 |
| K107-085 | 85 | 95 | 92 | 6.3 | 8.3 | 9 | PU9201 | 10002074 |
| K107-090 | 90 | 100 | 97 | 6.3 | 8.3 | 9 | PU9201 | 10002075 |
| K107-100 | 100 | 110 | 107 | 6.3 | 8.3 | 9 | PU9201 | 10002076 |
