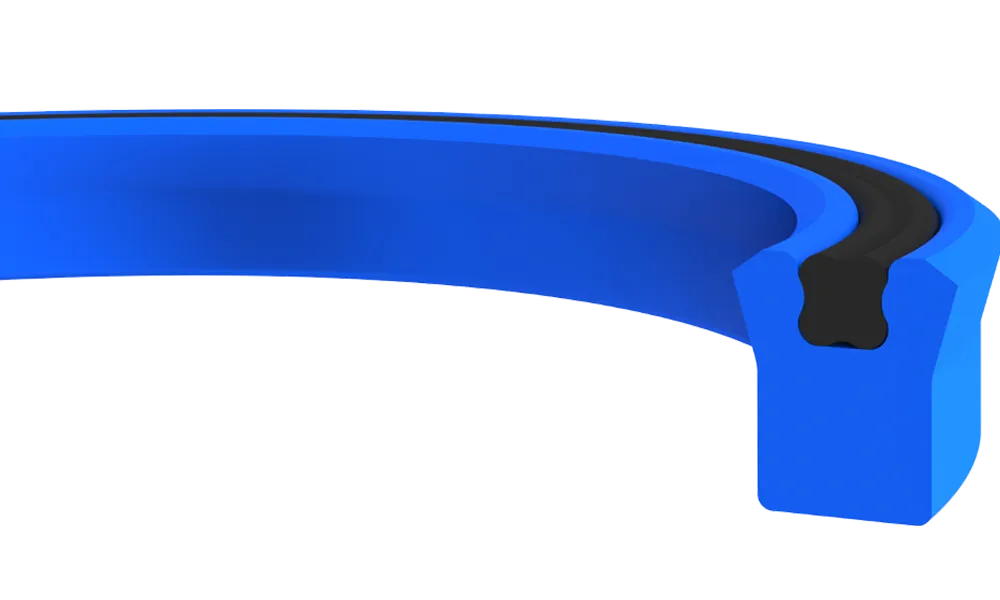

K114 Piston and Rod Seal
K114 piston-rod seal is a single acting sealing element which is able to work both at piston and rod applications thanks to symetrical design.
Technical details & request a quoteAdvantages
- Superior static and dynamic sealing performance
- Low leakage under variable pressure levels
- High and sustainable preload due to x-ring
- High abrasion resistance
Applications
- Mining industry
- Iron and steel industry
- Scrap metal presses
- Mobile machinery
- Marine hydraulics
Standard Sizes
18 sizes
| PRODUCT | D(f8) dp(h9) | Db(H10) D(H10) | L (+0.2/-0) | H | R | C | MATERIAL | KASTAŞ CODE |
|---|---|---|---|---|---|---|---|---|
| K114-030 | 30 | 40 | 7 | 6 | 0.2 | 5.5 | PU9404 | 10002240 |
| K114-035 | 35 | 45 | 7 | 6 | 0.2 | 5.5 | PU9404 | 10002241 |
| K114-040 | 40 | 50 | 7 | 6 | 0.2 | 5.5 | PU9404 | 10002242 |
| K114-045 | 45 | 60 | 11 | 10 | 0.4 | 6 | PU9404 | 10002243 |
| K114-045/1 | 45 | 55 | 7 | 6 | 0.2 | 5.5 | PU9404 | 10002245 |
| K114-050 | 50 | 60 | 7 | 6 | 0.2 | 5.5 | PU9404 | 10002246 |
| K114-050/1 | 50 | 60 | 11 | 10 | 0.2 | 5.5 | PU9404 | 10002247 |
| K114-053 | 53 | 63 | 7 | 6 | 0.2 | 5.5 | PU9404 | 10002248 |
| K114-055 | 55 | 65 | 7 | 6 | 0.2 | 5.5 | PU9404 | 10002249 |
| K114-060 | 60 | 70 | 7 | 6 | 0.2 | 5.5 | PU9404 | 10002250 |
| K114-063 | 2.5 | 3 | 0.414 | 0.375 | 0.015 | 0.236 | PU9404 | 10002251 |
| K114-065 | 65 | 75 | 7 | 6 | 0.2 | 5.5 | PU9404 | 10002252 |
| K114-070 | 70 | 80 | 7 | 6 | 0.2 | 5.5 | PU9404 | 10002253 |
| K114-075 | 75 | 85 | 7 | 6 | 0.2 | 5.5 | PU9404 | 10002254 |
| K114-080 | 80 | 90 | 7 | 6 | 0.2 | 5.5 | PU9404 | 10002255 |
| K114-085 | 85 | 100 | 10 | 9 | 0.4 | 6 | PU9404 | 10002256 |
| K114-165 | 165 | 180 | 10 | 9 | 0.4 | 6 | PU9404 | 10002257 |
| K114-187 | 7.375 | 7.875 | 0.295 | 0.255 | 0.015 | 0.236 | PU9404 | 10002258 |
