Wiper Seals

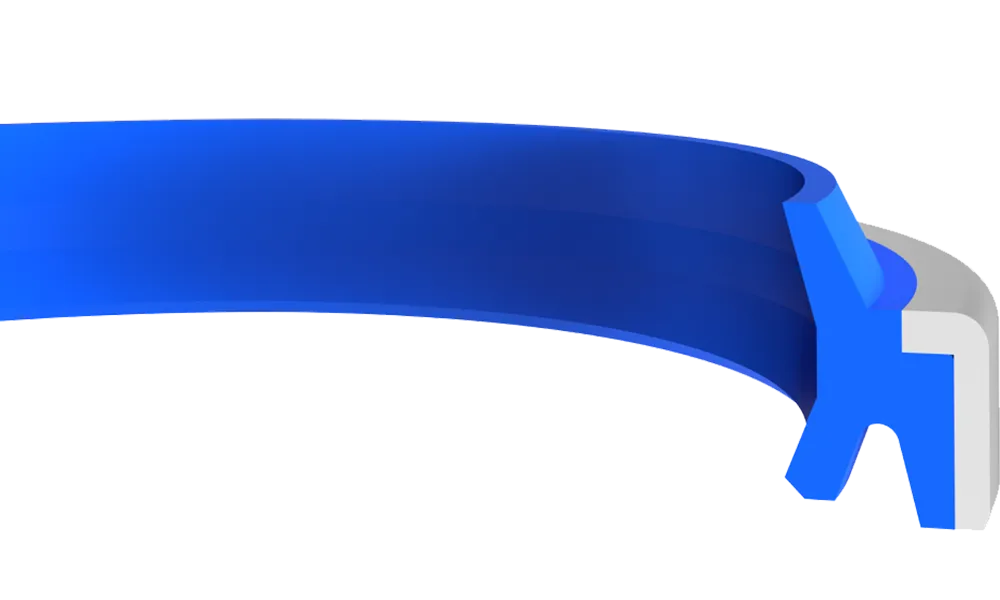

K12 Metal-Cased Wiper Seal
K12 metal case double wipers are sealing elements preventing that foreign particles from outer environment penetrate in the system thanks to their special design. They can be used in open housing gland cap design.
Technical details & request a quoteAdvantages
- Superior wiping performance
- Used in heavy conditions by the good tear and rupture properties of PU material
- Superior protection against particles in the external environment
Applications
- Construction machinery
- Forklifts
- Injection moulding machines
- Standard industrial cylinders
Standard Sizes
25 sizes
| PRODUCT | D (f8) | D (H8) | L (+0.3/-0) | H | A | MATERIAL | KASTAŞ CODE |
|---|---|---|---|---|---|---|---|
| K12-020 | 20 | 32 | 6 | 9 | 0.6 | PU9501 | 10048558 |
| K12-025 | 25 | 37 | 6 | 9 | 0.6 | PU9501 | 20000088 |
| K12-030 | 30 | 42 | 6 | 9 | 0.6 | PU9501 | 10048568 |
| K12-032 | 32 | 44 | 7 | 10 | 0.6 | PU9501 | 10048569 |
| K12-035 | 35 | 47 | 7 | 10 | 0.6 | PU9501 | 20000092 |
| K12-040 | 40 | 52 | 7 | 10 | 0.6 | PU9501 | 10047634 |
| K12-045 | 45 | 57 | 7 | 10 | 0.6 | PU9501 | 10048099 |
| K12-050 | 50 | 62 | 7 | 10 | 0.6 | PU9501 | 10048571 |
| K12-055 | 55 | 69 | 8 | 11 | 0.8 | PU9501 | 20000097 |
| K12-060 | 60 | 74 | 8 | 11 | 0.8 | PU9501 | 10048572 |
| K12-065 | 65 | 79 | 8 | 11 | 0.8 | PU9501 | 20000100 |
| K12-070 | 70 | 84 | 8 | 11 | 0.8 | PU9501 | 20000102 |
| K12-075 | 75 | 89 | 8 | 11 | 0.8 | PU9501 | 10048573 |
| K12-080 | 80 | 94 | 8 | 11 | 0.8 | PU9501 | 10048574 |
| K12-085 | 85 | 99 | 8 | 11 | 0.8 | PU9501 | 10048575 |
| K12-090 | 90 | 104 | 8 | 11 | 0.8 | PU9501 | 10048100 |
| K12-095 | 95 | 109 | 8 | 11 | 0.8 | PU9501 | 10048576 |
| K12-100 | 100 | 114 | 8 | 11 | 0.8 | PU9501 | 10048578 |
| K12-105 | 105 | 121 | 9 | 12 | 1 | PU9501 | 20000118 |
| K12-110 | 110 | 126 | 9 | 12 | 1 | PU9501 | 10048101 |
| K12-115 | 115 | 131 | 9 | 12 | 1 | PU9501 | 20000122 |
| K12-120 | 120 | 136 | 9 | 12 | 1 | PU9501 | 10048102 |
| K12-130 | 130 | 146 | 9 | 12 | 1 | PU9501 | 20000128 |
| K12-140 | 140 | 160 | 10 | 14 | 1.2 | PU9501 | 20000132 |
| K12-145 | 145 | 165 | 10 | 14 | 1.2 | PU9501 | 20000134 |
