Other Sealing Elements
K151 High-Pressure Sealing Element Set

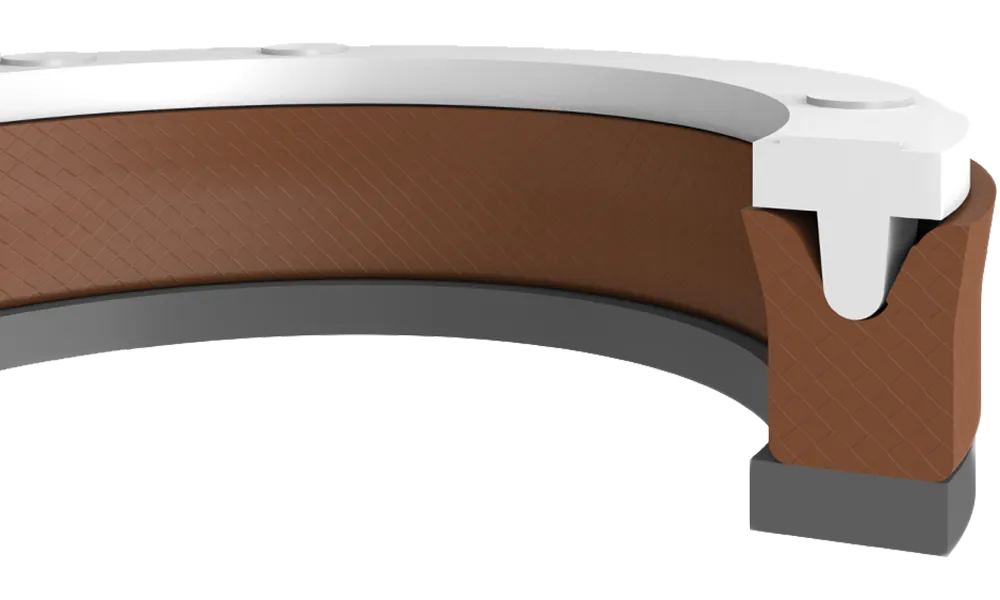

K151 high pressure sealing sets are three pieces rod sealing elements consisting of water resistant fabric elastomer chevron ring, backup ring and head adapter for pressure washers. * The product in the visual belongs to K151 consists of a chevron ring and front adapter. K151B SKU`s has an additional back-up ring.
Technical details & request a quoteAdvantages
- High speeds
- Water compatibility and low swelling
- Long service life
- Adjustable housing
Applications
- Pressure washers
Standard Sizes
21 sizes
| PRODUCT | D (f7) | D (H9) | L (+0.2/-0) | C | MATERIAL | KASTAŞ CODE |
|---|---|---|---|---|---|---|
| K151-014 B | 14 | 24 | 9 | 6 | PT6005 | 10002413 |
| K151-015 B | 15 | 24 | 9 | 6 | PT6005 | 10002415 |
| K151-016 B | 16 | 26 | 9 | 6 | PT6005 | 10002417 |
| K151-018 B | 18 | 28 | 10 | 6 | PT6005 | 10002419 |
| K151-020 B | 20 | 30 | 10 | 6 | PT6005 | 10002422 |
| K151-022 B | 22 | 32 | 10 | 6 | PT6005 | 10002426 |
| K151-024 B | 24 | 34 | 10 | 6 | PT6005 | 10002429 |
| K151-025 B | 25 | 35 | 10 | 6 | PT6005 | 10002431 |
| K151-028 B | 28 | 38 | 10 | 6 | PT6005 | 10002433 |
| K151-014 | 14 | 24 | 7.25 | 6 | FB8502 | 10002412 |
| K151-015 | 15 | 24 | 7.25 | 5 | FB8502 | 10002414 |
| K151-016 | 16 | 26 | 7.25 | 6 | FB8502 | 10002416 |
| K151-018 | 18 | 28 | 8 | 6 | FB8502 | 10002418 |
| K151-020 | 20 | 30 | 8 | 6 | FB8502 | 10002421 |
| K151-020/1 | 20 | 35 | 8.35 | 8 | FB8502 | 10002423 |
| K151-020/2 | 20 | 32 | 8 | 7 | FB8502 | 10002424 |
| K151-022 | 22 | 32 | 8.15 | 6 | FB8502 | 10002425 |
| K151-022/1 | 22.2 | 32 | 8 | 6 | FB8502 | 10002427 |
| K151-024 | 24 | 34 | 8 | 6 | FB8502 | 10002428 |
| K151-025 | 25 | 35 | 7.85 | 6 | FB8502 | 10002430 |
| K151-028 | 28 | 38 | 8 | 6 | FB8502 | 10002432 |
