Pneumatic Rod Seals

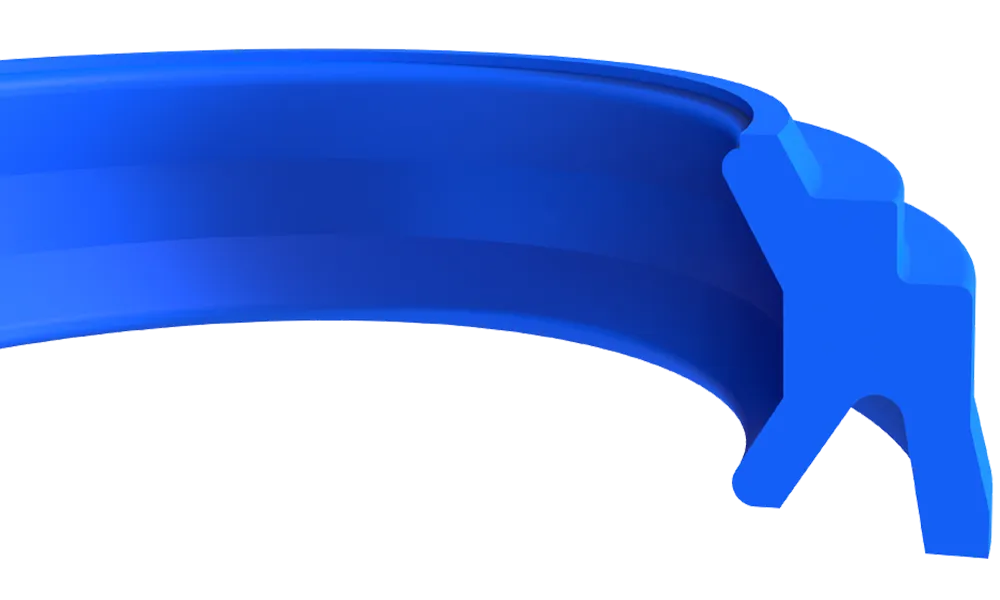

K64 Pneumatic Wiper Rod Seal
Pneumatic Rod Seal is a single acting sealing element that can perform both functions together with its dust lip preventing that foreign particles from outer environment penetrate in the cylinder and the nutring structure that provides sealing.
Technical details & request a quoteAdvantages
- Superior wiping performance
- Superior sealing performance
- Low friction
- Small housing dimensions
- High tear strength
- Low friction force values
Applications
- Short stroke pneumatic cylinders
- Recommended for use in cylinders according ISO 6432, 21287.
Standard Sizes
11 sizes
| PRODUCT | D (e9) | D (H10) | D1 (H11) | L (+0.2/-0) | L1 | H | MATERIAL | KASTAŞ CODE |
|---|---|---|---|---|---|---|---|---|
| K64-004 | 4 | 8.1 | 6.7 | 3 | 3.8 | 4 | PU9201 | 10022379 |
| K64-006 | 6 | 11.1 | 9.1 | 3.6 | 4.6 | 5 | PU9201 | 10022381 |
| K64-008 | 8 | 14.1 | 12.1 | 3.6 | 4.6 | 5 | PU9201 | 10022384 |
| K64-010 | 10 | 16.1 | 14.1 | 4.2 | 5.4 | 6 | PU9201 | 10022388 |
| K64-012 | 12 | 16.5 | 14.2 | 3 | 3.6 | 4 | PU9201 | 10022390 |
| K64-012/1 | 12 | 18.1 | 15.5 | 4.2 | 5.4 | 6 | PU9201 | 10022392 |
| K64-016 | 16 | 20.5 | 18.2 | 3 | 3.6 | 4 | PU9201 | 10022395 |
| K64-016/1 | 16 | 23 | 18.8 | 4.2 | 5.4 | 6 | PU9201 | 10022397 |
| K64-020 | 20 | 25 | 22.4 | 3.4 | 4 | 4.6 | PU9201 | 10022398 |
| K64-025 | 25 | 30 | 27.4 | 3.4 | 4 | 4.6 | PU9201 | 10022400 |
| K64-030 | 30 | 35.5 | 32.9 | 4 | 4.8 | 6 | PU9201 | 10022402 |
