Hydraulic Rod Seals
K704 Rod Seal

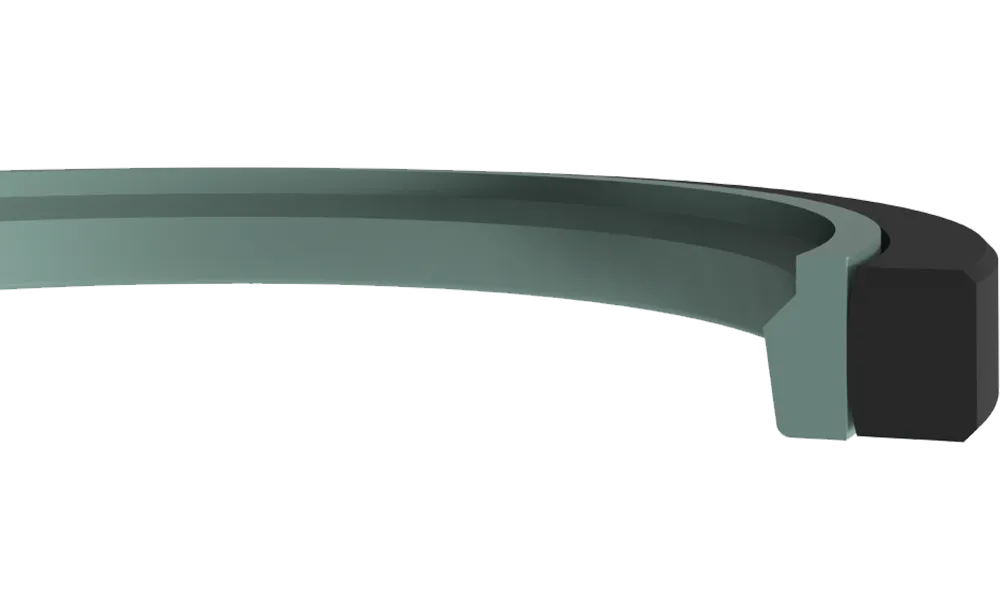

K704 single acting rod seal consists of PTFE sealing ring and a profile ring as an energizer. Specially designed for heavy duty applications, K704 rod seal offers high extrusion resistance and superior sealing performance.
Technical details & request a quoteAdvantages
- Suitable for heavy duty cylinders with large diameters
- Long Service Life
- High extrusion resistance
- Low friction and stick-slip free
- Available up to 1500 mm
Applications
- Iron and steel industry
- Injection moulding machines
- Rolling mills
- Hydraulic press cylinders
- Large diameter cylinders
- Marine hydraulics
Standard Sizes
16 sizes
| PRODUCT | D (f8) | D (H8) | L (+0.2/-0) | R | C | MATERIAL | KASTAŞ CODE |
|---|---|---|---|---|---|---|---|
| K704-140 | 140 | 160 | 10 | 0.4 | 7.5 | PT6003 | 10025238 |
| K704-155 | 155 | 175 | 10 | 0.4 | 7.5 | PT6003 | 10025239 |
| K704-200 | 200 | 220 | 10 | 0.4 | 7.5 | PT6003 | 10025243 |
| K704-240 | 240 | 265 | 12.5 | 0.4 | 10 | PT6003 | 10025244 |
| K704-280 | 280 | 305 | 12.5 | 0.4 | 10 | PT6003 | 10025247 |
| K704-290 | 290 | 315 | 12.5 | 0.4 | 10 | PT6003 | 10025248 |
| K704-300 | 300 | 325 | 12.5 | 0.4 | 10 | PT6003 | 10025249 |
| K704-310 | 310 | 340 | 15 | 0.8 | 12 | PT6003 | 10025250 |
| K704-320 | 320 | 350 | 15 | 0.8 | 12 | PT6003 | 10025251 |
| K704-330 | 330 | 360 | 15 | 0.8 | 12 | PT6003 | 10025253 |
| K704-340 | 340 | 370 | 15 | 0.8 | 12 | PT6003 | 10025255 |
| K704-380 | 380 | 410 | 15 | 0.8 | 12 | PT6003 | 10025256 |
| K704-415 | 415 | 445 | 15 | 0.8 | 12 | PT6003 | 10025258 |
| K704-475 | 475 | 505 | 15 | 0.8 | 12 | PT6003 | 10025260 |
| K704-560 | 560 | 584 | 17.5 | 1.2 | 12 | PT6003 | 10025266 |
| K704-570 | 570 | 605 | 17.5 | 1.2 | 12 | PT6003 | 10025267 |
