Static Sealing Elements

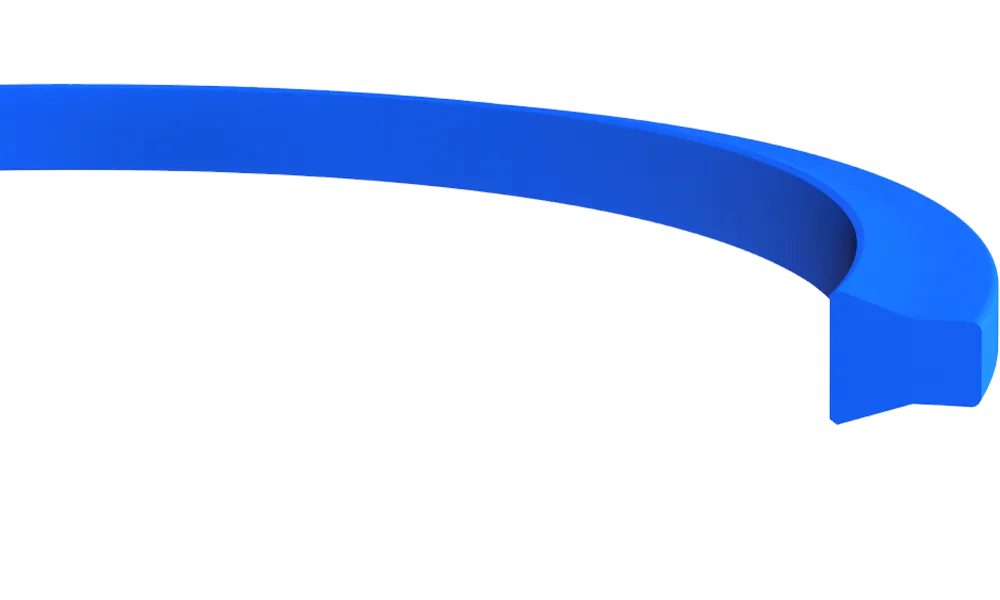

K82 Static Seal
K82 statics seals are designed for SAE flanges and has high resistance due to TPU materials
Technical details & request a quoteAdvantages
- Can replace O-rings
- Easy installation
- Can be used at high pressure
- No twisting in the housing
Applications
- SAE flanges
- Valve blocks
- Cover applications
Standard Sizes
6 sizes
| PRODUCT | D | D (H10) | T (±0.05) | L (±0.1) | MATERIAL | KASTAŞ CODE |
|---|---|---|---|---|---|---|
| K82-017 | 17 | 25.4 | 2.85 | 4.2 | PU9401 | 10028945 |
| K82-023.40 | 23.4 | 31.8 | 2.85 | 4.2 | PU9401 | 10028946 |
| K82-031.30 | 31.3 | 39.7 | 2.85 | 4.2 | PU9401 | 10028948 |
| K82-036.10 | 36.1 | 44.5 | 2.85 | 4.2 | PU9401 | 10028951 |
| K82-045.40 | 45.4 | 53.8 | 2.85 | 4.2 | PU9401 | 10028954 |
| K82-055 | 55 | 63.4 | 2.85 | 4.2 | PU9401 | 10028957 |
