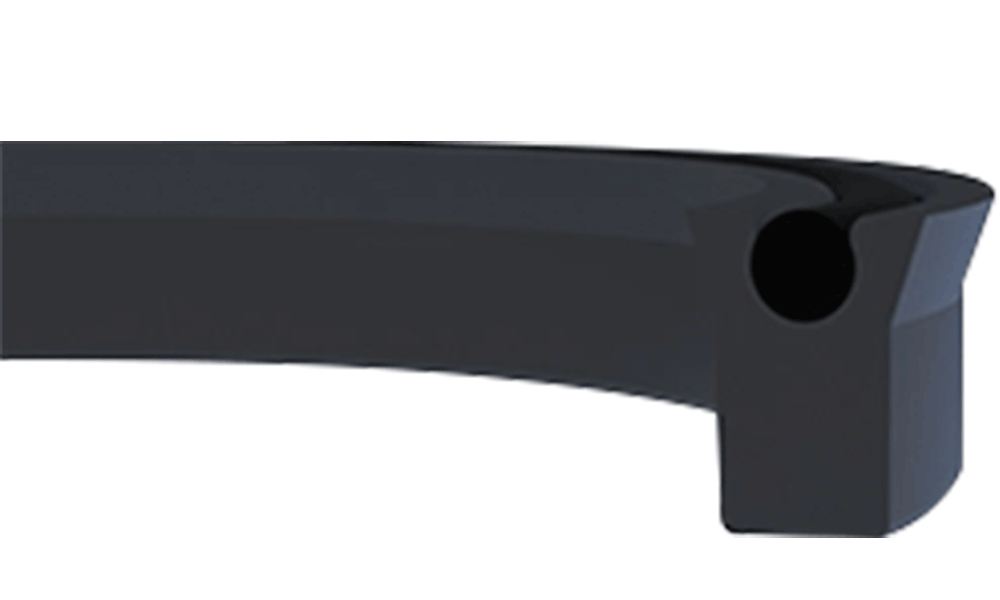

K922 Piston and Rod Seal
K922 piston-rod seal is a single acting hydraulic sealing element consisting of a specially formed polyurethane u-ring and an elastomer o-ring. K922 can be used in both piston and rod applications thanks to its symmetrical design.
Technical details & request a quoteAdvantages
- Safe use in low pressure and vacuum systems with the o-ring in the design
- Very good sealing in systems with static (locking) and long downtime
- High abrasion resistance thanks to TPU nutring"
Applications
- Material Handling
- Construction Machinery
- Hydraulic Press
- Agricultural Machinery
- Standard Industrial Cylinders"
Standard Sizes
18 sizes
| PRODUCT | D(f7) dp(h11) | Db(H10) D(H10) | L (+0.2/-0) | H | C | MATERIAL | KASTAŞ CODE |
|---|---|---|---|---|---|---|---|
| K922-012 | 0.5 | 0.75 | 0.276 | 0.246 | 0.138 | PU9412 S | 10054492 |
| K922-019 | 0.75 | 1 | 0.276 | 0.246 | 0.138 | PU9412 S | 10054655 |
| K922-025 | 1 | 1.25 | 0.276 | 0.246 | 0.138 | PU9412 S | 10054518 |
| K922-031 | 1.25 | 1.5 | 0.206 | 0.184 | 0.138 | PU9412 S | 10054537 |
| K922-031/1 | 1.25 | 1.5 | 0.276 | 0.246 | 0.138 | PU9412 S | 10054538 |
| K922-031/2 | 1.25 | 1.625 | 0.343 | 0.307 | 0.22 | PU9412 S | 10054539 |
| K922-034 | 1.375 | 1.875 | 0.413 | 0.369 | 0.22 | PU9412 S | 10054550 |
| K922-041 | 1.625 | 2 | 0.343 | 0.307 | 0.22 | PU9412 S | 10054565 |
| K922-050 | 2 | 2.5 | 0.413 | 0.369 | 0.22 | PU9412 S | 10054576 |
| K922-063 | 2.5 | 3 | 0.413 | 0.369 | 0.22 | PU9412 S | 10054588 |
| K922-066 | 2.625 | 3 | 0.413 | 0.369 | 0.22 | PU9412 S | 10054592 |
| K922-076 | 3 | 3.5 | 0.413 | 0.369 | 0.22 | PU9412 S | 10054599 |
| K922-088 | 3.5 | 4 | 0.413 | 0.369 | 0.22 | PU9412 S | 10054614 |
| K922-092 | 3.625 | 4 | 0.413 | 0.369 | 0.22 | PU9412 S | 10054619 |
| K922-098 | 3.875 | 4.5 | 0.551 | 0.492 | 0.233 | PU9412 S | 10054623 |
| K922-101 | 4 | 4.5 | 0.413 | 0.369 | 0.22 | PU9412 S | 10054626 |
| K922-107 | 4.25 | 4.75 | 0.604 | 0.554 | 0.22 | PU9412 S | 10054632 |
| K922-114 | 4.5 | 5 | 0.604 | 0.554 | 0.22 | PU9412 S | 10054636 |
