Hydraulic Piston and Rod Seals

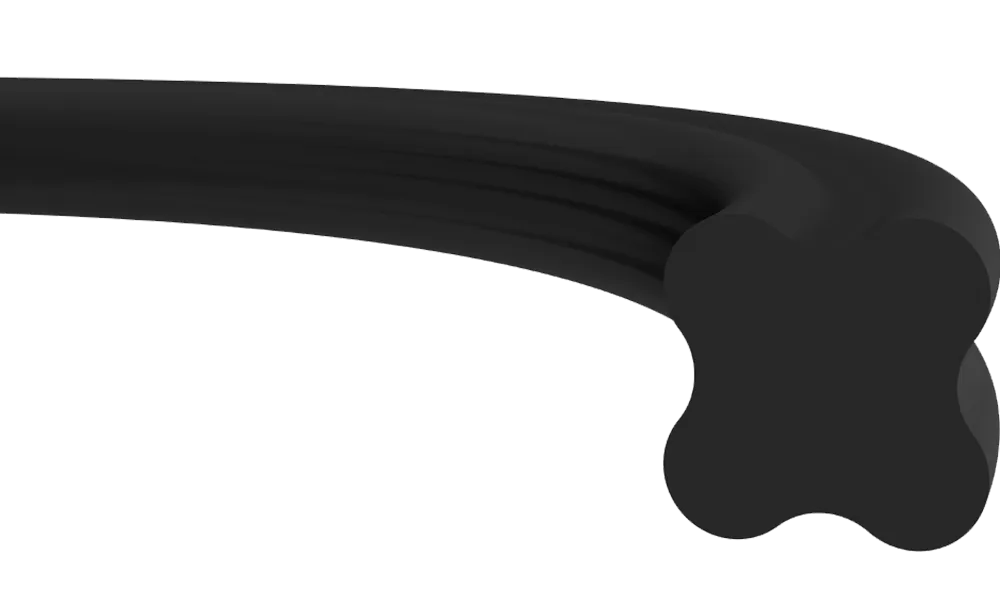

KX X-Ring
X-rings are double acting seals by elastomer materials, able to work as dynamic or static seal at many systems. It can be produced by FKM at the requirement of high temperature or chemical resistance.
Technical details & request a quoteAdvantages
- Suitable for both static and dynamic applications
- Wide application area
- Low friction compared to o-rings
- No twisting in the housing
- Economical sealing solution for low pressure
Applications
- Hydraulic and pneumatic static applications
- Flanges
- Valves
- Light duty cylinders
Standard Sizes
151 sizes
| PRODUCT | D | H | (a)static | (a)dynamic | B (+0.2/-0) | R | S | MATERIAL | KASTAŞ CODE |
|---|---|---|---|---|---|---|---|---|---|
| KX-0029017 | 2.9 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NB7001 | 20005964 |
| KX-0044817 | 4.48 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NB7001 | 20005966 |
| KX-0052817 | 5.28 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NB7001 | 20005968 |
| KX-0060226 | 6.02 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NB7001 | 20005969 |
| KX-0060717 | 6.07 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NB7001 | 20005970 |
| KX-0076026 | 7.6 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NB7001 | 20005972 |
| KX-0076617 | 7.66 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NB7001 | 20005973 |
| KX-0082017 | 8.2 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NB7001 | 20005974 |
| KX-0092517 | 9.25 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NB7001 | 20005975 |
| KX-0107826 | 10.78 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NB7001 | 20005976 |
| KX-0123726 | 12.37 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NB7001 | 20005977 |
| KX-0124217 | 12.42 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NB7001 | 20005978 |
| KX-0139526 | 13.95 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NB7001 | 20005979 |
| KX-0140017 | 14 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NB7001 | 20005980 |
| KX-0154735 | 15.47 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NB7001 | 20005981 |
| KX-0155426 | 15.54 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NB7001 | 20005982 |
| KX-0156017 | 15.6 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NB7001 | 20005983 |
| KX-0171717 | 17.17 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NB7001 | 20005985 |
| KX-0186435 | 18.64 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NB7001 | 20005986 |
| KX-0187226 | 18.72 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NB7001 | 20005988 |
| KX-0187717 | 18.77 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NB7001 | 20005989 |
| KX-0202235 | 20.22 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NB7001 | 20005990 |
| KX-0202926 | 20.29 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NB7001 | 20005991 |
| KX-0203517 | 20.35 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NB7001 | 20005992 |
| KX-0218926 | 21.89 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NB7001 | 20005994 |
| KX-0219517 | 21.95 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NB7001 | 20005995 |
| KX-0234035 | 23.4 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NB7001 | 20005996 |
| KX-0235217 | 23.52 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NB7001 | 20005997 |
| KX-0249935 | 24.99 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NB7001 | 20005999 |
| KX-0251217 | 25.12 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NB7001 | 20006001 |
| KX-0265835 | 26.58 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NB7001 | 20006002 |
| KX-0267017 | 26.7 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NB7001 | 20006003 |
| KX-0281735 | 28.17 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NB7001 | 20006004 |
| KX-0297535 | 29.75 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NB7001 | 20006006 |
| KX-0298717 | 29.87 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NB7001 | 20006008 |
| KX-0313435 | 31.34 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NB7001 | 20006009 |
| KX-0329235 | 32.92 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NB7001 | 20006010 |
| KX-0329926 | 32.99 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NB7001 | 20006012 |
| KX-0345235 | 34.52 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NB7001 | 20006013 |
| KX-0346517 | 34.65 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NB7001 | 20006014 |
| KX-0361035 | 36.1 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NB7001 | 20006016 |
| KX-0374753 | 37.47 | 5.33 | 4.75 | 4.9 | 6 | 0.4 | 0.1 | NB7001 | 20006017 |
| KX-0376935 | 37.69 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NB7001 | 20006018 |
| KX-0377726 | 37.77 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NB7001 | 20006020 |
| KX-0378217 | 37.82 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NB7001 | 20006021 |
| KX-0406553 | 40.65 | 5.33 | 4.75 | 4.9 | 6 | 0.4 | 0.1 | NB7001 | 20006023 |
| KX-0408735 | 40.87 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NB7001 | 20006025 |
| KX-0410017 | 41 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NB7001 | 20006026 |
| KX-0425226 | 42.52 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NB7001 | 20006028 |
| KX-0441717 | 44.17 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NB7001 | 20006029 |
| KX-0473517 | 47.35 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NB7001 | 20006033 |
| KX-0489026 | 48.9 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NB7001 | 20006035 |
| KX-0501653 | 50.16 | 5.33 | 4.75 | 4.9 | 6 | 0.4 | 0.1 | NB7001 | 20006036 |
| KX-0504035 | 50.4 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NB7001 | 20006038 |
| KX-0505217 | 50.52 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NB7001 | 20006039 |
| KX-0533453 | 53.34 | 5.33 | 4.75 | 4.9 | 6 | 0.4 | 0.1 | NB7001 | 20006041 |
| KX-0536426 | 53.64 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NB7001 | 20006043 |
| KX-0537017 | 53.7 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NB7001 | 20006045 |
| KX-0568717 | 56.87 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NB7001 | 20006046 |
| KX-0584226 | 58.42 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NB7001 | 20006048 |
| KX-0597053 | 59.7 | 5.33 | 4.75 | 4.9 | 6 | 0.4 | 0.1 | NB7001 | 20006049 |
| KX-0600517 | 60.05 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NB7001 | 20006052 |
| KX-0628753 | 62.87 | 5.33 | 4.75 | 4.9 | 6 | 0.4 | 0.1 | NB7001 | 20006053 |
| KX-0631726 | 63.17 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NB7001 | 20006054 |
| KX-0632217 | 63.22 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NB7001 | 20006055 |
| KX-0662735 | 66.27 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NB7001 | 20006058 |
| KX-0679526 | 67.95 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NB7001 | 20006059 |
| KX-0692253 | 69.22 | 5.33 | 4.75 | 4.9 | 6 | 0.4 | 0.1 | NB7001 | 20006060 |
| KX-0694435 | 69.44 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NB7001 | 20006061 |
| KX-0695717 | 69.57 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NB7001 | 20006062 |
| KX-0711226 | 71.12 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NB7001 | 20006064 |
| KX-0726235 | 72.62 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NB7001 | 20006066 |
| KX-0726926 | 72.69 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NB7001 | 20006067 |
| KX-0727517 | 72.75 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NB7001 | 20006068 |
| KX-0755753 | 75.57 | 5.33 | 4.75 | 4.9 | 6 | 0.4 | 0.1 | NB7001 | 20006069 |
| KX-0758726 | 75.87 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NB7001 | 20006071 |
| KX-0759217 | 75.92 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NB7001 | 20006073 |
| KX-0787453 | 78.74 | 5.33 | 4.75 | 4.9 | 6 | 0.4 | 0.1 | NB7001 | 20006075 |
| KX-0789735 | 78.97 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NB7001 | 20006076 |
| KX-0822226 | 82.22 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NB7001 | 20006077 |
| KX-0822717 | 82.27 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NB7001 | 20006079 |
| KX-0885726 | 88.57 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NB7001 | 20006080 |
| KX-0886217 | 88.62 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NB7001 | 20006082 |
| KX-0914453 | 91.44 | 5.33 | 4.75 | 4.9 | 6 | 0.4 | 0.1 | NB7001 | 20006084 |
| KX-0916735 | 91.67 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NB7001 | 20006085 |
| KX-0949326 | 94.93 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NB7001 | 20006087 |
| KX-0949717 | 94.97 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NB7001 | 20006089 |
| KX-1009753 | 100.97 | 5.33 | 4.75 | 4.9 | 6 | 0.4 | 0.1 | NB7001 | 20006090 |
| KX-1012726 | 101.27 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NB7001 | 20006091 |
| KX-1013217 | 101.32 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NB7001 | 20006093 |
| KX-1041453 | 104.14 | 5.33 | 4.75 | 4.9 | 6 | 0.4 | 0.1 | NB7001 | 20006094 |
| KX-1076226 | 107.62 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NB7001 | 20006095 |
| KX-1076717 | 107.62 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NB7001 | 20006098 |
| KX-1104953 | 110.49 | 5.33 | 4.75 | 4.9 | 6 | 0.4 | 0.1 | NB7001 | 20006099 |
| KX-1136753 | 113.67 | 5.33 | 4.75 | 4.9 | 6 | 0.4 | 0.1 | NB7001 | 20006100 |
| KX-1139726 | 113.97 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NB7001 | 20006101 |
| KX-1140217 | 114.02 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NB7001 | 20006103 |
| KX-1200253 | 120.02 | 5.33 | 4.75 | 4.9 | 6 | 0.4 | 0.1 | NB7001 | 20006104 |
| KX-1200269 | 120.02 | 6.99 | 6.2 | 6.4 | 8 | 0.6 | 0.1 | NB7001 | 20006105 |
| KX-1202535 | 120.25 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NB7001 | 20006106 |
| KX-1203226 | 120.32 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NB7001 | 20006107 |
| KX-1203717 | 120.37 | 1.78 | 1.4 | 1.5 | 2 | 0.2 | 0.05 | NB7001 | 20006109 |
| KX-1234235 | 123.42 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NB7001 | 20006111 |
| KX-1263769 | 126.37 | 6.99 | 6.2 | 6.4 | 8 | 0.6 | 0.1 | NB7001 | 20006113 |
| KX-1265753 | 126.57 | 5.33 | 4.75 | 4.9 | 6 | 0.4 | 0.1 | NB7001 | 20006114 |
| KX-1266035 | 126.6 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NB7001 | 20006115 |
| KX-1266726 | 126.67 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NB7001 | 20006117 |
| KX-1329435 | 132.94 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NB7001 | 20006118 |
| KX-1359069 | 135.9 | 6.99 | 6.2 | 6.4 | 8 | 0.6 | 0.1 | NB7001 | 20006119 |
| KX-1361235 | 136.12 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NB7001 | 20006120 |
| KX-1393726 | 139.37 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NB7001 | 20006122 |
| KX-1454269 | 145.42 | 6.99 | 6.2 | 6.4 | 8 | 0.6 | 0.1 | NB7001 | 20006123 |
| KX-1456535 | 145.65 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NB7001 | 20006124 |
| KX-1457226 | 145.72 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NB7001 | 20006126 |
| KX-1581253 | 158.12 | 5.33 | 4.75 | 4.9 | 6 | 0.4 | 0.1 | NB7001 | 20006128 |
| KX-1581269 | 158.12 | 6.99 | 6.2 | 6.4 | 8 | 0.6 | 0.1 | NB7001 | 20006129 |
| KX-1583535 | 158.35 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NB7001 | 20006130 |
| KX-1584226 | 158.42 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NB7001 | 20006132 |
| KX-1644769 | 164.47 | 6.99 | 6.2 | 6.4 | 8 | 0.6 | 0.1 | NB7001 | 20006133 |
| KX-1647035 | 164.7 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NB7001 | 20006134 |
| KX-1710535 | 171.05 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NB7001 | 20006136 |
| KX-1711126 | 171.11 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NB7001 | 20006137 |
| KX-1774035 | 177.4 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NB7001 | 20006138 |
| KX-1774726 | 177.47 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NB7001 | 20006140 |
| KX-1835253 | 183.52 | 5.33 | 4.75 | 4.9 | 6 | 0.4 | 0.1 | NB7001 | 20006141 |
| KX-1837535 | 183.75 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NB7001 | 20006142 |
| KX-1901035 | 190.10 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NB7001 | 20006144 |
| KX-1901726 | 190.17 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NB7001 | 20006145 |
| KX-1962269 | 196.22 | 6.99 | 6.2 | 6.4 | 8 | 0.6 | 0.1 | NB7001 | 20006146 |
| KX-1965226 | 196.52 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NB7001 | 20006147 |
| KX-2025753 | 202.57 | 5.33 | 4.75 | 4.9 | 6 | 0.4 | 0.1 | NB7001 | 20006148 |
| KX-2028726 | 202.87 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NB7001 | 20006149 |
| KX-2091535 | 209.15 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NB7001 | 20006150 |
| KX-2152769 | 215.27 | 6.99 | 6.2 | 6.4 | 8 | 0.6 | 0.1 | NB7001 | 20006151 |
| KX-2155726 | 215.57 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NB7001 | 20006153 |
| KX-2219226 | 221.92 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NB7001 | 20006154 |
| KX-2345435 | 234.54 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NB7001 | 20006155 |
| KX-2346226 | 234.62 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NB7001 | 20006157 |
| KX-2473326 | 247.33 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NB7001 | 20006159 |
| KX-2663035 | 266.3 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NB7001 | 20006160 |
| KX-2787769 | 278.77 | 6.99 | 6.2 | 6.4 | 8 | 0.6 | 0.1 | NB7001 | 20006161 |
| KX-2789935 | 278.99 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NB7001 | 20006162 |
| KX-2914769 | 291.47 | 6.99 | 6.2 | 6.4 | 8 | 0.6 | 0.1 | NB7001 | 20006164 |
| KX-2917035 | 291.7 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NB7001 | 20006165 |
| KX-3043935 | 304.39 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NB7001 | 20006166 |
| KX-3298035 | 329.8 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NB7001 | 20006167 |
| KX-3552035 | 355.2 | 3.53 | 3.1 | 3.2 | 4 | 0.4 | 0.08 | NB7001 | 20006169 |
| KX-4052669 | 405.26 | 6.99 | 6.2 | 6.4 | 8 | 0.6 | 0.1 | NB7001 | 20006170 |
| KX-0441226 | 44.12 | 2.62 | 2.25 | 2.3 | 3 | 0.3 | 0.08 | NB7001 | 20006856 |
| KX-0850953 | 85.09 | 5.33 | 4.75 | 4.9 | 6 | 0.4 | 0.1 | NB7001 | 20006660 |
| KX-1232053 | 123.2 | 5.33 | 4.75 | 4.9 | 6 | 0.4 | 0.1 | NB7001 | 20006110 |
