K25 Pnömatik Piston Keçesi

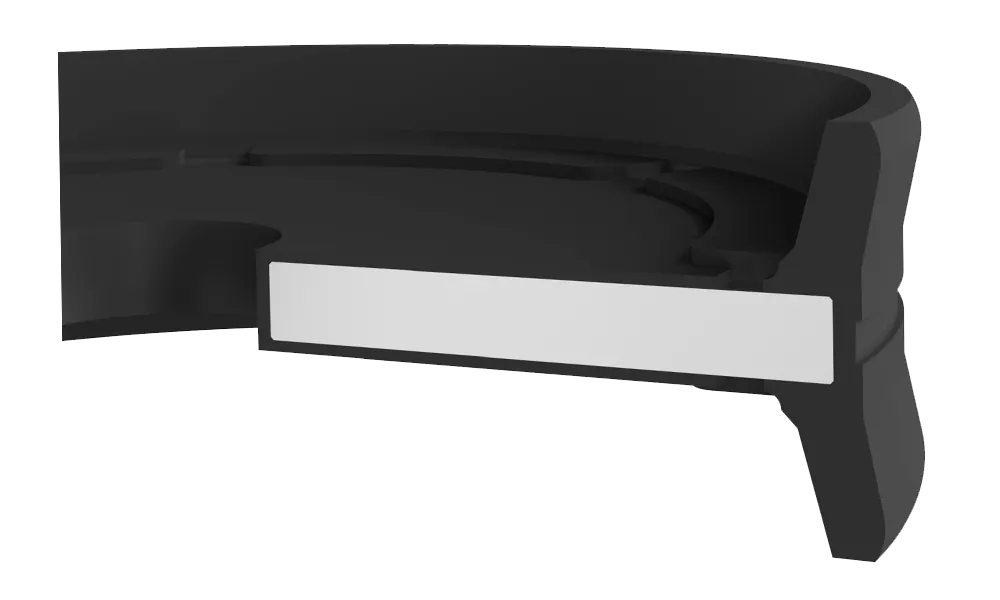

K25 Pnömatik Piston Keçesi, metal disk ve kauçuk malzemenin özel yöntemlerle beraber vulkanize edilmesiyle oluşan çift etkili piston sızdırmazlık elemanıdır.
Teknik detay ve teklifAvantajları
- Piston kafası işleme gereksinimi olmaması
- Geniş standart ürün yelpazesinin olması
- Sürtünme dayanımının yüksek olması
- Kolay montaj yapılabilmesi
- Uzun süreli kullanılabilmesi
- Ekonomik çözüm sağlaması
Uygulama alanları
- Demir ve alüminyum pnömatik silindirler
Standart ölçüler
| Ürün | D (H11) | d (h9) | H | d1 | s | h | MALZEME | KASTAŞ KOD |
|---|---|---|---|---|---|---|---|---|
| K25-020 | 20 | 5.2 | 8 | 12.2 | 1 | 1.4 | NB7501 | 10014299 |
| K25-025 | 25 | 8 | 12 | 14.5 | 3 | 4 | NB7501 | 10014304 |
| K25-026 | 26 | 8 | 12 | 15.5 | 3 | 4 | NB7501 | 10014308 |
| K25-032 | 32 | 8 | 15 | 16 | 3 | 4 | NB7501 | 10014312 |
| K25-035 | 35 | 8 | 15 | 19 | 3 | 4 | NB7501 | 10014316 |
| K25-036 | 36 | 8 | 15 | 20 | 3 | 4 | NB7501 | 10014318 |
| K25-040 | 40 | 10 | 18 | 23 | 4 | 5 | NB7501 | 10014320 |
| K25-050 | 50 | 10 | 18 | 29 | 4 | 5 | NB7501 | 10014334 |
| K25-050/2 | 50 | 16 | 20.5 | 25 | 4 | 5 | NB7501 | 10014339 |
| K25-060 | 60 | 12 | 22 | 36.8 | 4 | 5 | NB7501 | 10014347 |
| K25-062 | 62 | 15 | 22 | 39 | 5 | 6 | NB7501 | 10014350 |
| K25-063 | 63 | 12 | 22 | 40.5 | 5 | 6 | NB7501 | 10014351 |
| K25-070 | 70 | 12 | 22 | 47 | 5 | 6 | NB7501 | 10014362 |
| K25-075 | 75 | 15 | 22 | 52 | 5 | 6 | NB7501 | 10014366 |
| K25-075/1 | 75 | 12 | 22.5 | 52 | 5 | 6 | NB7501 | 10014368 |
| K25-080 | 80 | 16 | 25 | 55 | 5 | 6.5 | NB7501 | 10014371 |
| K25-080/3 | 80 | 12 | 25 | 55 | 5 | 6.5 | NB7501 | 10014377 |
| K25-080/4 | 80 | 16 | 22.5 | 55.2 | 5 | 6.5 | NB7501 | 10014378 |
| K25-080/5 | 80 | 20 | 22.5 | 55.2 | 5 | 6.5 | NB7501 | 10014381 |
| K25-090 | 90 | 16 | 25 | 65 | 5 | 6.5 | NB7501 | 10014389 |
| K25-090/1 | 90 | 12 | 24 | 65 | 6 | 7.5 | NB7501 | 10014391 |
| K25-100 | 100 | 16 | 25 | 75 | 5 | 6.5 | NB7501 | 10014393 |
| K25-100/1 | 100 | 20 | 25 | 75 | 5 | 6.5 | NB7501 | 10014399 |
| K25-100/4 | 100 | 12 | 25 | 75 | 5 | 6.5 | NB7501 | 10014404 |
| K25-100/6 | 100 | 20 | 26 | 75 | 5 | 6.5 | NB7501 | 10014405 |
| K25-100/10 | 100 | 18 | 25 | 75 | 5 | 6.5 | NB7501 | 10014401 |
| K25-102 | 102 | 16 | 25 | 77 | 5 | 6.5 | NB7501 | 10014411 |
| K25-110 | 110 | 18 | 25 | 85 | 6 | 7.5 | NB7501 | 10014413 |
| K25-125 | 125 | 20 | 30 | 90 | 8 | 10 | NB7501 | 10014416 |
| K25-125/1 | 125 | 20 | 26 | 90 | 6 | 7.5 | NB7501 | 10014420 |
| K25-125/3 | 125 | 18 | 30 | 90 | 8 | 10 | NB7501 | 10014421 |
| K25-130 | 130 | 20 | 29 | 95 | 8 | 10 | NB7501 | 10014426 |
| K25-140 | 140 | 20 | 30 | 95 | 10 | 12 | NB7501 | 10014427 |
| K25-150 | 150 | 20 | 30 | 105 | 10 | 12 | NB7501 | 10014430 |
| K25-160 | 160 | 27 | 31 | 115 | 10 | 12 | NB7501 | 10014433 |
| K25-160/3 | 160 | 20 | 30 | 130 | 10 | 10.7 | NB7501 | 10014436 |
| K25-180 | 180 | 27 | 31 | 135 | 10 | 12 | NB7501 | 10014440 |
| K25-190 | 190 | 20 | 30 | 160.4 | 10 | 12 | NB7501 | 10014444 |
| K25-190/1 | 190 | 12 | 35 | 140 | 10 | 13 | NB7501 | 10014445 |
| K25-200 | 200 | 27 | 35 | 150 | 12 | 15 | NB7501 | 10014447 |
| K25-200/2 | 200 | 20 | 35 | 150 | 12 | 15 | NB7501 | 10014451 |
| K25-200/4 | 200 | 20 | 30 | 150 | 12 | 15.5 | NB7501 | 10014453 |
| K25-200/5 | 200 | 30 | 35 | 150 | 8 | 10.6 | NB7501 | 10014454 |
| K25-250 | 250 | 30 | 35 | 200 | 12 | 16.5 | NB7501 | 10014458 |
| K25-260 | 260 | 16 | 35 | 210 | 12 | 15.5 | NB7501 | 10014462 |
| K25-300 | 300 | 30 | 35 | 250 | 12 | 15.5 | NB7501 | 10014464 |
| K25-320 | 320 | 36 | 40 | 278.5 | 15 | 18.6 | NB7501 | 10014466 |
| K25-400 | 400 | 40 | 50 | 320 | 20 | 23 | NB7501 | 10014470 |
| K25-025/2 | 1 | 0.25 | 0.5 | 0.37 | 0.098 | 0.138 | NB7501 | 10014307 |
| K25-028 | 1.125 | 0.25 | 0.5 | 0.495 | 0.098 | 0.138 | NB7501 | 10014309 |
| K25-031 | 1.25 | 0.25 | 0.563 | 0.62 | 0.098 | 0.138 | NB7501 | 10014311 |
| K25-034 | 1.375 | 0.25 | 0.563 | 0.706 | 0.098 | 0.138 | NB7501 | 10014314 |
| K25-044 | 1.75 | 0.25 | 0.562 | 0.924 | 0.098 | 0.138 | NB7501 | 10014328 |
| K25-050/7 | 2 | 0.375 | 0.625 | 0.62 | 0.118 | 0.157 | NB7501 | 10014345 |
| K25-057 | 2.25 | 0.375 | 0.625 | 1.364 | 0.118 | 0.157 | NB7501 | 10014346 |
| K25-060/1 | 2.375 | 0.375 | 0.625 | 1.489 | 0.118 | 0.157 | NB7501 | 10014348 |
| K25-063/4 | 2.5 | 0.375 | 0.625 | 1.614 | 0.118 | 0.157 | NB7501 | 10014357 |
| K25-069 | 2.75 | 0.375 | 0.75 | 1.864 | 0.157 | 0.217 | NB7501 | 10014360 |
| K25-073 | 2.875 | 0.375 | 0.75 | 1.891 | 0.157 | 0.217 | NB7501 | 10014365 |
| K25-076 | 3 | 0.5 | 0.75 | 2.016 | 0.157 | 0.197 | NB7501 | 10014369 |
| K25-082 | 3.25 | 0.5 | 0.75 | 2.266 | 0.157 | 0.197 | NB7501 | 10014386 |
| K25-082/1 | 3.25 | 0.875 | 0.75 | 2.266 | 0.157 | 0.197 | NB7501 | 10014387 |
| K25-088 | 3.5 | 0.5 | 0.875 | 2.516 | 0.197 | 0.236 | NB7501 | 10014388 |
| K25-095 | 3.75 | 0.5 | 0.875 | 2.766 | 0.197 | 0.236 | NB7501 | 10014392 |
| K25-101 | 4 | 0.5 | 0.875 | 3.016 | 0.197 | 0.236 | NB7501 | 10014410 |
| K25-107 | 4.25 | 0.5 | 0.875 | 3.266 | 0.197 | 0.236 | NB7501 | 10014412 |
| K25-114 | 4.5 | 0.75 | 0.875 | 3.122 | 0.197 | 0.236 | NB7501 | 10014414 |
| K25-127 | 5 | 0.75 | 1 | 3.622 | 0.236 | 0.295 | NB7501 | 10014424 |
| K25-146 | 5.75 | 0.75 | 1 | 3.979 | 0.236 | 0.295 | NB7501 | 10014429 |
| K25-152 | 6 | 0.75 | 1 | 4.228 | 0.236 | 0.295 | NB7501 | 10014432 |
| K25-165 | 6.5 | 0.75 | 1 | 4.728 | 0.236 | 0.295 | NB7501 | 10014438 |
| K25-177 | 7 | 1.25 | 1.125 | 5.228 | 0.315 | 0.394 | NB7501 | 10014439 |
| K25-202 | 7.961 | 1.25 | 1.5 | 5.925 | 0.394 | 0.433 | NB7501 | 10014455 |
| K25-203 | 8 | 1.25 | 1.125 | 6.031 | 0.315 | 0.394 | NB7501 | 10014456 |
| K25-253 | 9.961 | 1.75 | 1.625 | 7.087 | 0.472 | 0.591 | NB7501 | 10014460 |
