Hidrolik Boğaz Sızdırmazlık Elemanları

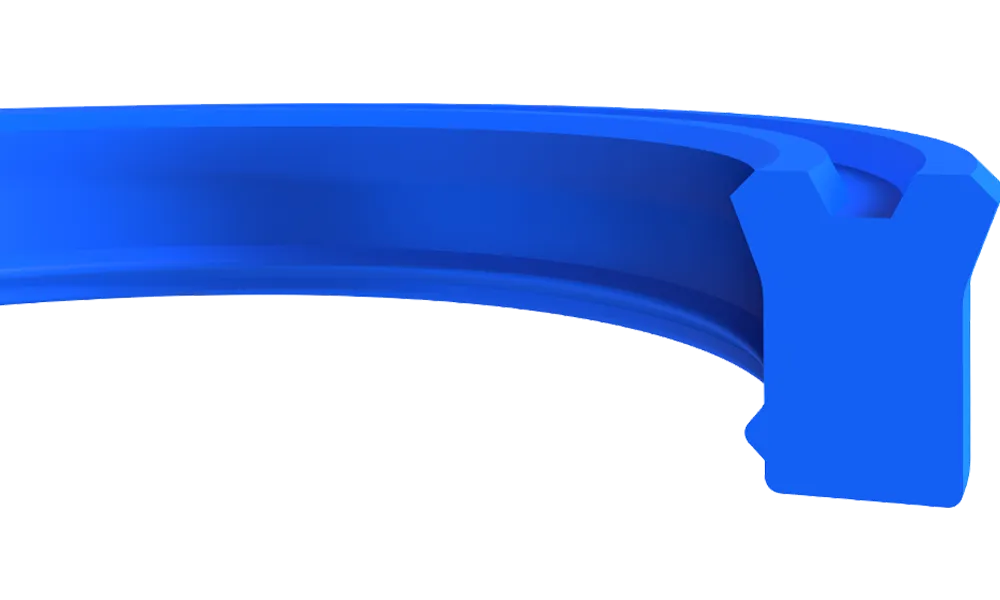

K38 Boğaz Keçesi
K38 Boğaz Keçesi; hidrolik boğaz uygulamalarında kullanılmak üzere tasarlanmıştır. Ürün, ikinci bir dudağa sahip olan, kesimli dudak yapısı ve kısa havuz ölçüsü ile iyi sızdırmazlık sağlayan bir boğaz keçesidir. Düşük basınçlarda uygun ön yüklemeye sahip yapısı ile iyi sonuçlar vermektedir.
Teknik detay ve teklifAvantajları
- Yüksek ve düşük basınçlarda iyi sızdırmazlık özelliği
- İkinci dudak ile ana sızdırmazlık dudağına gelebilecek partikülleri engelleyen tasarım
- Yüksek aşınma dayanımı
- Kapalı kanala kolay montaj yapılabilmesi
- Küçük kanal boyutlarına uygun tasarım
- Eksenel yüklerin olduğu titreşimli sistemlerde (teleskobik) uygun tasarım
Uygulama alanları
- Araç üstü sektörü
- Endüstriyel silindirler
- Teleskobik silindirler
Standart ölçüler
| Ürün | d (f8) | D (H10) | L (+0.2/-0) | H | C | MALZEME | KASTAŞ KOD |
|---|---|---|---|---|---|---|---|
| K38-006 | 6 | 14 | 6.8 | 5.8 | 4.5 | PU9401 | 10018470 |
| K38-008 | 8 | 16 | 6.8 | 5.8 | 4.5 | PU9401 | 10018471 |
| K38-010 | 10 | 18 | 6.8 | 5.8 | 4.5 | PU9401 | 10018472 |
| K38-010/1 | 10 | 16 | 4.5 | 4 | 3.5 | PU9401 | 10018473 |
| K38-012 | 12 | 19 | 6.7 | 5.7 | 4 | PU9401 | 10018475 |
| K38-012/1 | 12 | 20 | 6.8 | 5.8 | 4.5 | PU9401 | 10018476 |
| K38-014 | 14 | 22 | 6.8 | 5.8 | 4.5 | PU9401 | 10018477 |
| K38-015 | 15 | 21.5 | 4.7 | 4.2 | 3.5 | PU9401 | 10018478 |
| K38-016 | 16 | 24 | 6.8 | 5.8 | 4.5 | PU9401 | 10018481 |
| K38-016/1 | 16 | 22 | 4.5 | 4 | 3.5 | PU9401 | 10018484 |
| K38-018 | 18 | 26 | 6.8 | 5.8 | 4.5 | PU9401 | 10018487 |
| K38-018/1 | 18 | 26 | 9 | 8 | 4.5 | PU9401 | 10018489 |
| K38-018/2 | 18 | 25 | 6 | 5 | 4 | PU9401 | 10018490 |
| K38-020 | 20 | 27 | 6.8 | 5.8 | 4 | PU9401 | 10018493 |
| K38-020/1 | 20 | 28 | 6.8 | 5.8 | 4.5 | PU9401 | 10018495 |
| K38-020/2 | 20 | 30 | 8 | 7 | 5.5 | PU9401 | 10018497 |
| K38-022 | 22 | 28 | 5 | 4.5 | 3.5 | PU9401 | 10018498 |
| K38-022/1 | 22 | 30 | 6.8 | 5.8 | 4.5 | PU9401 | 10018499 |
| K38-022/2 | 22 | 30 | 8 | 7 | 4.5 | PU9401 | 10018502 |
| K38-022/3 | 22 | 32 | 9 | 8 | 5.5 | PU9401 | 10018503 |
| K38-022/5 | 0.875 | 1.125 | 0.276 | 0.25 | 0.138 | PU9401 | 10018504 |
| K38-022/6 | 0.875 | 1.125 | 0.138 | 0.125 | 0.138 | PU9401 | 10018505 |
| K38-024 | 24.5 | 30 | 5 | 4.5 | 3.5 | PU9401 | 10018506 |
| K38-025 | 25 | 33 | 6.8 | 5.8 | 4.5 | PU9401 | 10018507 |
| K38-025/1 | 25 | 33 | 8 | 7 | 4.5 | PU9401 | 10018510 |
| K38-025/2 | 25 | 35 | 8 | 7 | 5.5 | PU9401 | 10018511 |
| K38-025/3 | 25 | 35 | 11 | 10 | 5.5 | PU9401 | 10018512 |
| K38-025/4 | 25 | 35 | 9 | 8 | 5.5 | PU9401 | 10018513 |
| K38-028 | 28 | 38 | 6.8 | 5.8 | 5.5 | PU9401 | 10018515 |
| K38-028/1 | 28 | 38 | 8 | 7 | 5.5 | PU9401 | 10018516 |
| K38-028/2 | 28 | 36 | 7.3 | 6.3 | 4.5 | PU9401 | 10018517 |
| K38-028/3 | 28 | 36 | 6.8 | 5.8 | 4.5 | PU9401 | 10018520 |
| K38-028/4 | 28 | 34 | 3.9 | 3.4 | 3.5 | PU9401 | 10018521 |
| K38-028/5 | 28 | 36 | 6 | 5 | 4.5 | PU9401 | 10018522 |
| K38-030 | 30 | 38 | 6.8 | 5.8 | 4.5 | PU9401 | 10018524 |
| K38-030/1 | 30 | 38 | 9 | 8 | 4.5 | PU9401 | 10018527 |
| K38-030/2 | 30 | 36 | 7 | 6 | 3.5 | PU9401 | 10018528 |
| K38-030/3 | 30 | 40 | 7.5 | 6.5 | 5.5 | PU9401 | 10018529 |
| K38-030/4 | 30 | 40 | 11 | 10 | 5.5 | PU9401 | 10018530 |
| K38-030/5 | 30 | 40 | 8 | 7 | 5.5 | PU9401 | 10018531 |
| K38-030/6 | 30 | 38 | 8 | 7 | 4.5 | PU9401 | 10018533 |
| K38-031 | 1.25 | 1.5 | 0.276 | 0.25 | 0.138 | PU9401 | 10018535 |
| K38-031/1 | 1.25 | 1.625 | 0.276 | 0.25 | 0.217 | PU9401 | 10018536 |
| K38-032 | 32 | 40 | 9 | 8 | 4.5 | PU9401 | 10018538 |
| K38-032/1 | 32 | 42 | 8 | 7 | 5.5 | PU9401 | 10018539 |
| K38-032/2 | 32 | 40 | 8 | 7 | 4.5 | PU9401 | 10018540 |
| K38-032/3 | 32 | 40 | 7.5 | 6.5 | 4.5 | PU9401 | 10018541 |
| K38-032/4 | 32 | 42 | 9 | 8 | 5.5 | PU9401 | 10018542 |
| K38-034 | 34 | 50 | 11 | 10 | 6 | PU9401 | 10018543 |
| K38-034/1 | 1.375 | 1.75 | 0.343 | 0.312 | 0.217 | PU9401 | 10018544 |
| K38-035 | 35 | 43 | 6.8 | 5.8 | 4.5 | PU9401 | 10018545 |
| K38-035/1 | 35 | 43 | 9 | 8 | 4.5 | PU9401 | 10018547 |
| K38-035/2 | 35 | 45 | 11 | 10 | 5.5 | PU9401 | 10018549 |
| K38-035/3 | 35 | 50 | 11 | 10 | 6 | PU9401 | 10018550 |
| K38-035/4 | 35 | 45 | 8 | 7 | 5.5 | PU9401 | 10018551 |
| K38-036 | 36 | 44 | 6.8 | 5.8 | 4.5 | PU9401 | 10018552 |
| K38-036/1 | 36 | 44 | 9 | 8 | 4.5 | PU9401 | 10018555 |
| K38-037 | 37 | 47 | 11 | 10 | 5.5 | PU9401 | 10018557 |
| K38-038 | 38 | 50 | 9.5 | 8.5 | 5.5 | PU9401 | 10018558 |
| K38-038/1 | 1.5 | 1.875 | 0.343 | 0.312 | 0.217 | PU9401 | 10018559 |
| K38-038/2 | 1.5 | 1.875 | 0.276 | 0.25 | 0.217 | PU9401 | 10018560 |
| K38-040 | 40 | 48 | 6.8 | 5.8 | 4.5 | PU9401 | 10018561 |
| K38-040/1 | 40 | 48 | 9 | 8 | 4.5 | PU9401 | 10018563 |
| K38-040/2 | 40 | 50 | 8 | 7 | 5.5 | PU9401 | 10018565 |
| K38-040/3 | 40 | 50 | 11 | 10 | 5.5 | PU9401 | 10018567 |
| K38-040/4 | 40 | 55 | 11 | 10 | 6 | PU9401 | 10018568 |
| K38-040/5 | 40 | 60 | 11 | 10 | 6.5 | PU9401 | 10018569 |
| K38-040/6 | 40 | 50 | 9 | 8 | 5.5 | PU9401 | 10018570 |
| K38-040/7 | 40 | 48 | 7 | 6 | 4.5 | PU9401 | 10018571 |
| K38-042 | 42 | 50 | 7 | 6 | 4.5 | PU9401 | 10018572 |
| K38-042/1 | 42 | 52 | 9 | 8 | 5.5 | PU9401 | 10018573 |
| K38-044 | 1.75 | 2.125 | 0.343 | 0.312 | 0.217 | PU9401 | 10018574 |
| K38-045 | 45 | 53 | 6.8 | 5.8 | 4.5 | PU9401 | 10018575 |
| K38-045/1 | 45 | 55 | 6.8 | 5.8 | 5.5 | PU9401 | 10018577 |
| K38-045/2 | 45 | 55 | 8 | 7 | 5.5 | PU9401 | 10018578 |
| K38-045/3 | 45 | 55 | 11 | 10 | 5.5 | PU9401 | 10018579 |
| K38-045/4 | 45 | 52 | 13 | 12 | 4 | PU9401 | 10018580 |
| K38-045/5 | 45 | 53 | 9 | 8 | 4.5 | PU9401 | 10018581 |
| K38-045/6 | 45 | 53 | 7.3 | 6.3 | 4.5 | PU9401 | 10018583 |
| K38-046 | 46 | 54 | 9 | 8 | 4.5 | PU9401 | 10018585 |
| K38-048 | 48 | 60 | 7 | 6 | 5.5 | PU9401 | 10018587 |
| K38-050 | 50 | 58 | 9 | 8 | 4.5 | PU9401 | 10018589 |
| K38-050/1 | 50 | 60 | 8 | 7 | 5.5 | PU9401 | 10018590 |
| K38-050/2 | 50 | 60 | 10 | 9 | 5.5 | PU9401 | 10018593 |
| K38-050/3 | 50 | 60 | 11 | 10 | 5.5 | PU9401 | 10018594 |
| K38-050/4 | 50 | 65 | 11 | 10 | 6 | PU9401 | 10018596 |
| K38-050/5 | 50 | 70 | 14.5 | 13.5 | 6.5 | PU9401 | 10018597 |
| K38-050/6 | 2 | 2.375 | 0.343 | 0.312 | 0.217 | PU9401 | 10018598 |
| K38-050/7 | 2 | 2.5 | 0.276 | 0.25 | 0.217 | PU9401 | 10018599 |
| K38-050/8 | 50 | 63 | 10 | 9 | 5.5 | PU9401 | 10018600 |
| K38-050/9 | 50 | 63 | 11 | 10 | 5.5 | PU9401 | 10018601 |
| K38-055 | 55 | 63 | 9 | 8 | 4.5 | PU9401 | 10018602 |
| K38-055/1 | 55 | 65 | 11 | 10 | 5.5 | PU9401 | 10018604 |
| K38-055/2 | 55 | 65 | 13 | 12 | 5.5 | PU9401 | 10018605 |
| K38-055/3 | 55 | 65 | 9 | 8 | 5.5 | PU9401 | 10018606 |
| K38-055/4 | 55 | 65 | 8 | 7 | 5.5 | PU9401 | 10018607 |
| K38-056 | 56 | 66 | 7.5 | 6.5 | 5.5 | PU9401 | 10018608 |
| K38-056/1 | 56 | 71 | 12.5 | 11.5 | 6 | PU9401 | 10018610 |
| K38-056/2 | 56 | 64 | 9 | 8 | 4.5 | PU9401 | 10018611 |
| K38-057 | 2.25 | 2.625 | 0.413 | 0.375 | 0.217 | PU9401 | 10018612 |
| K38-057/1 | 2.25 | 2.625 | 0.37 | 0.335 | 0.217 | PU9401 | 10018613 |
| K38-060 | 60 | 68 | 9 | 8 | 4.5 | PU9401 | 10018615 |
| K38-060/1 | 60 | 70 | 8.5 | 7.5 | 5.5 | PU9401 | 10018617 |
| K38-060/2 | 60 | 70 | 11 | 10 | 5.5 | PU9401 | 10018618 |
| K38-060/3 | 60 | 70 | 12.5 | 11.5 | 5.5 | PU9401 | 10018620 |
| K38-060/4 | 60 | 72 | 10 | 9 | 5.5 | PU9401 | 10018621 |
| K38-060/5 | 60 | 68 | 13 | 12 | 4.5 | PU9401 | 10018622 |
| K38-060/6 | 60 | 70 | 8 | 7 | 5.5 | PU9401 | 10018623 |
| K38-060/7 | 60 | 68 | 8 | 7 | 4.5 | PU9401 | 10018624 |
| K38-060/8 | 60 | 68 | 7.3 | 6.3 | 4.5 | PU9401 | 10018625 |
| K38-061 | 61 | 69 | 9 | 8 | 4.5 | PU9401 | 10018628 |
| K38-063 | 63 | 71 | 9 | 8 | 4.5 | PU9401 | 10018630 |
| K38-063/1 | 2.5 | 2.875 | 0.413 | 0.375 | 0.217 | PU9401 | 10018631 |
| K38-063/2 | 63 | 75 | 9.6 | 8.6 | 5.5 | PU9401 | 10018632 |
| K38-065 | 65 | 73 | 9 | 8 | 4.5 | PU9401 | 10018633 |
| K38-065/1 | 65 | 75 | 13.5 | 12.5 | 5.5 | PU9401 | 10018635 |
| K38-068 | 68 | 76 | 9 | 8 | 4.5 | PU9401 | 10018637 |
| K38-069 | 2.75 | 3.125 | 0.413 | 0.375 | 0.217 | PU9401 | 10018638 |
| K38-070 | 70 | 78 | 9 | 8 | 4.5 | PU9401 | 10018639 |
| K38-070/1 | 70 | 80 | 13 | 12 | 5.5 | PU9401 | 10018640 |
| K38-070/2 | 70 | 85 | 12.5 | 11.5 | 6 | PU9401 | 10018642 |
| K38-070/3 | 70 | 82 | 10 | 9 | 5.5 | PU9401 | 10018644 |
| K38-070/4 | 70 | 80 | 7.5 | 6.5 | 5.5 | PU9401 | 10018646 |
| K38-070/5 | 70 | 80 | 8 | 7 | 5.5 | PU9401 | 10018647 |
| K38-074 | 74 | 82 | 9 | 8 | 4.5 | PU9401 | 10018649 |
| K38-075 | 75 | 83 | 9 | 8 | 4.5 | PU9401 | 10018650 |
| K38-075/1 | 75 | 85 | 9 | 8 | 5.5 | PU9401 | 10018652 |
| K38-075/2 | 75 | 85 | 8 | 7 | 5.5 | PU9401 | 10018653 |
| K38-075/3 | 75 | 83 | 7.5 | 6.5 | 4.5 | PU9401 | 10018654 |
| K38-075/4 | 75 | 83 | 7.3 | 6.3 | 4.5 | PU9401 | 10018655 |
| K38-076 | 76 | 84 | 9 | 8 | 4.5 | PU9401 | 10018656 |
| K38-076/1 | 3 | 3.375 | 0.413 | 0.375 | 0.217 | PU9401 | 10018658 |
| K38-078 | 78 | 86 | 13 | 12 | 4.5 | PU9401 | 10018659 |
| K38-080 | 80 | 88 | 9 | 8 | 4.5 | PU9401 | 10018661 |
| K38-080/1 | 80 | 90 | 11 | 10 | 5.5 | PU9401 | 10018663 |
| K38-080/2 | 80 | 90 | 13 | 12 | 5.5 | PU9401 | 10018664 |
| K38-080/3 | 80 | 95 | 12.5 | 11.5 | 6 | PU9401 | 10018666 |
| K38-080/4 | 80 | 96 | 10.5 | 9.5 | 6 | PU9401 | 10018667 |
| K38-080/5 | 80 | 92 | 10 | 9 | 5.5 | PU9401 | 10018668 |
| K38-085 | 85 | 93 | 9 | 8 | 4.5 | PU9401 | 10018670 |
| K38-085/1 | 85 | 95 | 13 | 12 | 5.5 | PU9401 | 10018671 |
| K38-086 | 86 | 101 | 13 | 12 | 6 | PU9401 | 10018672 |
| K38-088 | 88 | 96 | 9 | 8 | 4.5 | PU9401 | 10018674 |
| K38-088/1 | 3.5 | 4 | 0.413 | 0.375 | 0.217 | PU9401 | 10018676 |
| K38-090 | 90 | 98 | 9 | 8 | 4.5 | PU9401 | 10018680 |
| K38-090/1 | 90 | 102 | 10 | 9 | 5.5 | PU9401 | 10018682 |
| K38-090/2 | 90 | 105 | 12.5 | 11.5 | 6 | PU9401 | 10018683 |
| K38-090/3 | 90 | 110 | 15 | 14 | 6.5 | PU9401 | 10018684 |
| K38-090/4 | 90 | 98 | 7.5 | 6.5 | 4.5 | PU9401 | 10018685 |
| K38-091 | 91 | 99 | 9 | 8 | 4.5 | PU9401 | 10018686 |
| K38-092 | 92 | 100 | 7.3 | 6.3 | 4.5 | PU9401 | 10018688 |
| K38-095 | 95 | 103 | 9 | 8 | 4.5 | PU9401 | 10018690 |
| K38-095/1 | 95 | 105 | 9 | 8 | 5.5 | PU9401 | 10018692 |
| K38-097 | 97 | 105 | 14 | 13 | 4.5 | PU9401 | 10018693 |
| K38-097/1 | 97 | 105 | 13 | 12 | 4.5 | PU9401 | 10018694 |
| K38-100 | 100 | 108 | 12.5 | 11.5 | 4.5 | PU9401 | 10018699 |
| K38-100/1 | 100 | 115 | 13 | 12 | 6 | PU9401 | 10018700 |
| K38-100/2 | 100 | 120 | 16 | 15 | 6.5 | PU9401 | 10018702 |
| K38-100/3 | 100 | 108 | 9 | 8 | 4.5 | PU9401 | 10018703 |
| K38-101 | 4 | 4.5 | 0.413 | 0.375 | 0.217 | PU9401 | 10018704 |
| K38-104 | 104 | 112 | 9 | 8 | 4.5 | PU9401 | 10018705 |
| K38-105 | 105 | 113 | 9 | 8 | 5.5 | PU9401 | 10018706 |
| K38-106 | 106 | 116 | 9 | 8 | 4.5 | PU9401 | 10018707 |
| K38-107 | 107 | 115 | 9 | 8 | 4.5 | PU9401 | 10018708 |
| K38-108 | 108 | 116 | 9 | 8 | 6.5 | PU9401 | 10018710 |
| K38-110 | 110 | 130 | 16 | 15 | 6 | PU9401 | 10018711 |
| K38-110/1 | 110 | 125 | 10.5 | 9.5 | 6 | PU9401 | 10018712 |
| K38-112 | 112 | 127 | 13 | 12 | 4.5 | PU9401 | 10018713 |
| K38-114 | 4.5 | 5 | 0.413 | 0.375 | 0.217 | PU9401 | 10018714 |
| K38-115 | 115 | 123 | 9 | 8 | 5.5 | PU9401 | 10018715 |
| K38-115/1 | 115 | 125 | 9 | 8 | 5 | PU9401 | 10018716 |
| K38-115/2 | 115 | 124 | 16 | 15 | 4.5 | PU9401 | 10018717 |
| K38-115/3 | 115 | 123 | 12.5 | 11.5 | 4.5 | PU9401 | 10018718 |
| K38-118 | 118 | 126 | 14 | 13 | 4.5 | PU9401 | 10018720 |
| K38-120 | 120 | 128 | 12.5 | 11.5 | 6 | PU9401 | 10018722 |
| K38-120/1 | 120 | 135 | 16 | 15 | 3.5 | PU9401 | 10018723 |
| K38-122 | 122 | 128 | 9 | 8 | 6.5 | PU9401 | 10018724 |
| K38-125 | 125 | 145 | 19 | 15 | 4.5 | PU9401 | 10018725 |
| K38-126 | 126 | 134 | 9 | 8 | 4.5 | PU9401 | 10018726 |
| K38-135 | 135 | 143 | 12.5 | 11.5 | 5.5 | PU9401 | 10018729 |
| K38-135/1 | 135 | 145 | 9 | 8 | 3.5 | PU9401 | 10018730 |
| K38-139 | 5.5 | 6 | 0.413 | 0.375 | 0.217 | PU9401 | 10018732 |
| K38-142 | 142 | 148 | 9 | 8 | 4.5 | PU9401 | 10018733 |
| K38-145 | 145 | 153 | 9 | 8 | 4.5 | PU9401 | 10018734 |
| K38-155 | 155 | 163 | 12.5 | 11.5 | 6 | PU9401 | 10018737 |
| K38-155/1 | 155 | 170 | 12.5 | 11.5 | 5.5 | PU9401 | 10018738 |
| K38-160 | 160 | 170 | 9 | 8 | 4.5 | PU9401 | 10018740 |
| K38-165 | 165 | 173 | 9 | 8 | 5.5 | PU9401 | 10018742 |
| K38-166 | 166 | 176 | 13 | 12 | 4.5 | PU9401 | 10018744 |
| K38-171 | 6.75 | 7.25 | 0.413 | 0.375 | 0.217 | PU9401 | 10018746 |
| K38-175 | 175 | 183 | 12.5 | 11.5 | 5.5 | PU9401 | 10018747 |
| K38-180 | 180 | 190 | 12 | 11 | 5.5 | PU9401 | 10018748 |
| K38-185 | 185 | 195 | 9 | 8 | 5.5 | PU9401 | 10018750 |
| K38-208 | 208 | 218 | 9 | 8 | 5.5 | PU9401 | 10018753 |
| K38-210 | 210 | 220 | 12 | 11 | 5.5 | PU9401 | 10018755 |
| K38-212 | 212 | 223 | 9 | 8 | 5.5 | PU9401 | 10018756 |
| K38-220 | 220 | 230 | 12.5 | 11.5 | 5.5 | PU9401 | 10018758 |
| K38-019 PU | 0.75 | 0.937 | 0.177 | 0.156 | 0.118 | PU9401 | 10051844 |
| K38-022/7 PU | 0.875 | 1.125 | 0.207 | 0.187 | 0.138 | PU9401 | 10051845 |
| K38-025/7 PU | 1 | 1.25 | 0.207 | 0.187 | 0.138 | PU9401 | 10051846 |
| K38-026 PU | 1.062 | 1.302 | 0.207 | 0.187 | 0.138 | PU9401 | 10051847 |
| K38-028/7 PU | 1.125 | 1.367 | 0.207 | 0.187 | 0.138 | PU9401 | 10051848 |
| K38-031/3 PU | 1.25 | 1.49 | 0.236 | 0.197 | 0.138 | PU9401 | 10051849 |
| K38-031/4 PU | 1.25 | 1.625 | 0.415 | 0.375 | 0.217 | PU9401 | 10051850 |
| K38-034/3 PU | 1.375 | 1.615 | 0.236 | 0.197 | 0.138 | PU9401 | 10051851 |
| K38-034/4 PU | 1.375 | 1.75 | 0.415 | 0.375 | 0.217 | PU9401 | 10051852 |
| K38-038/3 PU | 1.5 | 1.74 | 0.207 | 0.187 | 0.138 | PU9401 | 10051853 |
| K38-038/4 PU | 1.5 | 1.875 | 0.335 | 0.295 | 0.217 | PU9401 | 10051854 |
| K38-038/5 PU | 1.5 | 1.875 | 0.415 | 0.375 | 0.217 | PU9401 | 10051855 |
| K38-044/1 PU | 1.75 | 2.118 | 0.323 | 0.283 | 0.217 | PU9401 | 10051856 |
| K38-047 PU | 1.875 | 2.246 | 0.321 | 0.281 | 0.217 | PU9401 | 10051857 |
| K38-050/10 PU | 2 | 2.37 | 0.321 | 0.281 | 0.217 | PU9401 | 10051858 |
| K38-063/3 PU | 2.5 | 2.871 | 0.321 | 0.281 | 0.217 | PU9401 | 10051859 |
