Hidrolik Piston-Boğaz Sızdırmazlık Elemanları

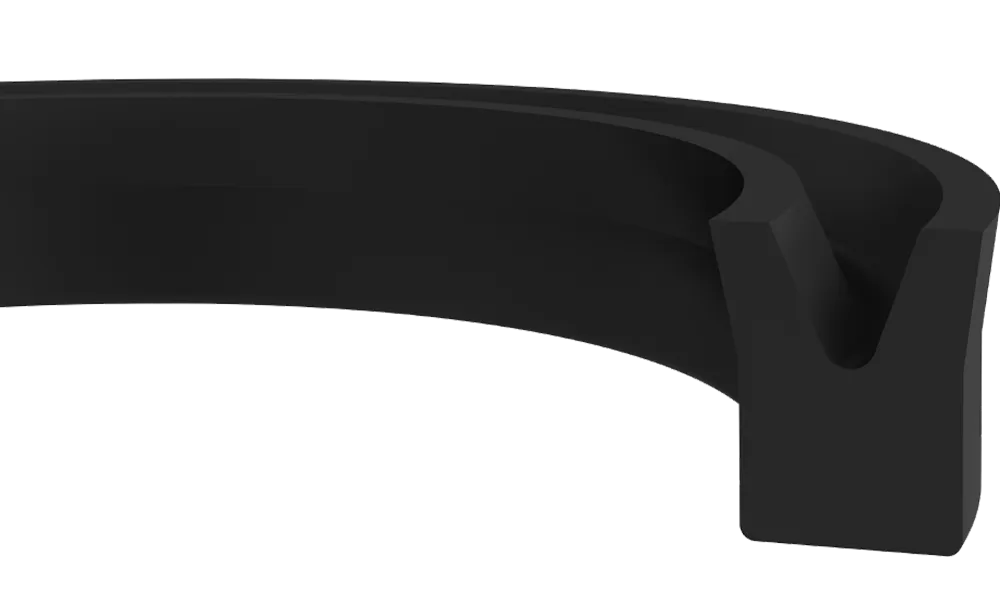

K95 Piston Boğaz Keçesi
K95 Piston-Boğaz Keçesi, düz kesimli ve simetrik dudak yapısı sayesinde hem piston hem de boğaz uygulamarında kullanıma uygun olarak tasarlanmış, elastomer malzemeden üretilen tek etkili bir sızdırmazlık elemanıdır. 100 bar üzeri sistemlerde destek ringi ile kullanımı tavsiye edilir.
Teknik detay ve teklifAvantajları
- Geniş standart ürün yelpazesinin olması
- Kapalı kanal kolay monte edilebilmesi
- Hidrolik silindirler için tasarlanmış olmasına rağmen özel uygulamalarda pnömatrik silindirlerde de kullanılabilmesi
- Basit kanal tasarımı
- Ekonomik çözüm sunması
Uygulama alanları
- Forkliftler
- Enjeksiyon tezgahları
- Tarım makineleri sektörü
- Standart hidrolik silindirler
Standart ölçüler
| Ürün | d(f7) dp(h11) | Db(H11) D(H11) | L (+0.2/-0) | H | C | MALZEME | KASTAŞ KOD |
|---|---|---|---|---|---|---|---|
| K95-003 | 3 | 7 | 6 | 5 | 3 | NB9001 | 10029559 |
| K95-004 | 4 | 10 | 4.5 | 4 | 3 | NB9001 | 10029562 |
| K95-005 | 5 | 12 | 6 | 5 | 3 | NB9001 | 10029564 |
| K95-006 | 6 | 12 | 4.5 | 4 | 3 | NB9001 | 10029565 |
| K95-006/1 | 6 | 15 | 6 | 5 | 4 | NB9001 | 10029567 |
| K95-006/3 | 6 | 16 | 7 | 6 | 4.5 | NB9001 | 10029570 |
| K95-006/5 | 6.45 | 13 | 4.9 | 4.4 | 3 | NB9001 | 10029573 |
| K95-007 | 7 | 15 | 6 | 5 | 4 | NB9001 | 10029575 |
| K95-007/1 | 0,313 | 0,5 | 0,157 | 0,14 | 0,1 | NB9001 | 10029576 |
| K95-008 | 8 | 14 | 4.5 | 4 | 3 | NB9001 | 10029577 |
| K95-008/1 | 8 | 14.2 | 4 | 3.5 | 3 | NB9001 | 10029580 |
| K95-008/2 | 8 | 16 | 4 | 3.5 | 4 | NB9001 | 10029581 |
| K95-008/3 | 8 | 16 | 4.7 | 4.2 | 4 | NB9001 | 10029582 |
| K95-008/4 | 8 | 12 | 4.5 | 4 | 2 | NB9001 | 10029583 |
| K95-010 | 10 | 14 | 2.5 | 2 | 2 | NB9001 | 10029584 |
| K95-010/1 | 10 | 16 | 4.5 | 4 | 3 | NB9001 | 10029586 |
| K95-010/3 | 10 | 18 | 6 | 5 | 4 | NB9001 | 10029591 |
| K95-010/4 | 10 | 22 | 7 | 6 | 5 | NB9001 | 10029593 |
| K95-010/5 | 10 | 19 | 4 | 3.5 | 4 | NB9001 | 10029594 |
| K95-010/6 | 10 | 20 | 4 | 3.5 | 4.5 | NB9001 | 10029595 |
| K95-010/7 | 10 | 23 | 5 | 4.5 | 5 | NB9001 | 10029596 |
| K95-010/8 | 10 | 15 | 6 | 5 | 3 | NB9001 | 10029597 |
| K95-010/9 | 10 | 14 | 5 | 4.5 | 2 | NB9001 | 10029598 |
| K95-012 | 12 | 18 | 4.5 | 4 | 3 | NB9001 | 10029601 |
| K95-012/1 | 12 | 20 | 6.5 | 5.5 | 4 | NB9001 | 10029605 |
| K95-012/3 | 12 | 22 | 6 | 5 | 4.5 | NB9001 | 10029606 |
| K95-012/4 | 12 | 24 | 7 | 6 | 5 | NB9001 | 10029608 |
| K95-012/5 | 12.5 | 23 | 4 | 3.5 | 4.5 | NB9001 | 10029609 |
| K95-012/6 | 12.5 | 20 | 5 | 4.5 | 4 | NB9001 | 10029610 |
| K95-012/7 | 0,492 | 0,799 | 0,157 | 0,14 | 0,2 | NB9001 | 10029612 |
| K95-014 | 14 | 20 | 4.5 | 4 | 3 | NB9001 | 10029613 |
| K95-014/1 | 14 | 20 | 5.3 | 4.8 | 3 | NB9001 | 10029615 |
| K95-014/2 | 14 | 25 | 4 | 3.5 | 4.5 | NB9001 | 10029618 |
| K95-015 | 15 | 22 | 4.5 | 4 | 3 | NB9001 | 10029619 |
| K95-015/1 | 15 | 24 | 8 | 7 | 4 | NB9001 | 10029620 |
| K95-015/2 | 15 | 25 | 7 | 6 | 4.5 | NB9001 | 10029621 |
| K95-016 | 16 | 22 | 4.5 | 4 | 3 | NB9001 | 10029623 |
| K95-016/1 | 16 | 22 | 7 | 6 | 3 | NB9001 | 10029625 |
| K95-016/2 | 16 | 25 | 6 | 5 | 4 | NB9001 | 10029626 |
| K95-016/3 | 16 | 26 | 6 | 5 | 4.5 | NB9001 | 10029627 |
| K95-018 | 18 | 26 | 4.5 | 4 | 4 | NB9001 | 10029630 |
| K95-018/1 | 18 | 24 | 4.5 | 4 | 3 | NB9001 | 10029631 |
| K95-018/2 | 18 | 25 | 4.5 | 4 | 3 | NB9001 | 10029632 |
| K95-020 | 20 | 28 | 4.5 | 4 | 4 | NB9001 | 10029633 |
| K95-020/1 | 20 | 28 | 9 | 8 | 4 | NB9001 | 10029636 |
| K95-020/3 | 20 | 30 | 9 | 8 | 4.5 | NB9001 | 10029638 |
| K95-020/5 | 20 | 35 | 11 | 10 | 5.5 | NB9001 | 10029640 |
| K95-020/6 | 20 | 32 | 8.5 | 7.5 | 5 | NB9001 | 10029641 |
| K95-022 | 22 | 30 | 7 | 6 | 4 | NB9001 | 10029642 |
| K95-022/1 | 22 | 35 | 8 | 7 | 5 | NB9001 | 10029643 |
| K95-022/2 | 22 | 32 | 6 | 5 | 4.5 | NB9001 | 10029644 |
| K95-022/3 | 22 | 28 | 6 | 5 | 3 | NB9001 | 10029646 |
| K95-024 | 24 | 30 | 6 | 5 | 3 | NB9001 | 10029648 |
| K95-024/1 | 24 | 32 | 4.5 | 4 | 4 | NB9001 | 10029650 |
| K95-024/2 | 24 | 34 | 6 | 5 | 4.5 | NB9001 | 10029651 |
| K95-024/3 | 24.5 | 32 | 6 | 5 | 4 | NB9001 | 10029652 |
| K95-025 | 25 | 33 | 8 | 7 | 4 | NB9001 | 10029653 |
| K95-025/1 | 25 | 40 | 7 | 6 | 5.5 | NB9001 | 10029655 |
| K95-027 | 27 | 36 | 7 | 6 | 4 | NB9001 | 10029657 |
| K95-028 | 28 | 38 | 6 | 5 | 4.5 | NB9001 | 10029658 |
| K95-028/2 | 28 | 52 | 11 | 10 | 7 | NB9001 | 10029660 |
| K95-029 | 29 | 35 | 7 | 6 | 3 | NB9001 | 10029662 |
| K95-030 | 30 | 40 | 10 | 9 | 4.5 | NB9001 | 10029664 |
| K95-030/1 | 30 | 45 | 11 | 10 | 5.5 | NB9001 | 10029665 |
| K95-030/2 | 30 | 55 | 13 | 12 | 7 | NB9001 | 10029666 |
| K95-032 | 32 | 42 | 9 | 8 | 4.5 | NB9001 | 10029667 |
| K95-032/1 | 32 | 40 | 8 | 7 | 4 | NB9001 | 10029668 |
| K95-032/2 | 32 | 48 | 9 | 8 | 5.5 | NB9001 | 10029670 |
| K95-032/3 | 32 | 40 | 4.5 | 4 | 4.5 | NB9001 | 10029671 |
| K95-033 | 33 | 42 | 8 | 7 | 4 | NB9001 | 10029672 |
| K95-035 | 35 | 45 | 6 | 5 | 4.5 | NB9001 | 10029673 |
| K95-035/1 | 35 | 45 | 7 | 6 | 4.5 | NB9001 | 10029675 |
| K95-035/2 | 35 | 42 | 6.3 | 5.3 | 4.5 | NB9001 | 10029676 |
| K95-040 | 40 | 50 | 6 | 5 | 4.5 | NB9001 | 10029677 |
| K95-040/1 | 40 | 60 | 11 | 10 | 7 | NB9001 | 10029679 |
| K95-040/2 | 40 | 48 | 9 | 8 | 4 | NB9001 | 10029680 |
| K95-046 | 46 | 70 | 13 | 12 | 7 | NB9001 | 10029685 |
| K95-048 | 48 | 60 | 7 | 6 | 5 | NB9001 | 10029686 |
| K95-048/1 | 48 | 60 | 8 | 7 | 5 | NB9001 | 10029688 |
| K95-050 | 50 | 80 | 16 | 15 | 8 | NB9001 | 10029689 |
| K95-050/1 | 50 | 75 | 13 | 12 | 7 | NB9001 | 10029690 |
| K95-055 | 55 | 70 | 11 | 10 | 5.5 | NB9001 | 10029691 |
| K95-058 | 58 | 70 | 7 | 6 | 5 | NB9001 | 10029692 |
| K95-060 | 60 | 100 | 21 | 20 | 10 | NB9001 | 10029693 |
| K95-061 | 61 | 73 | 7 | 6 | 5 | NB9001 | 10029694 |
| K95-062 | 62 | 86 | 13 | 12 | 7 | NB9001 | 10029695 |
| K95-062/1 | 62 | 72 | 6 | 5 | 4.5 | NB9001 | 10029696 |
| K95-064 | 64 | 80 | 9 | 8 | 5.5 | NB9001 | 10029697 |
| K95-072 | 72 | 84 | 9 | 8 | 5 | NB9001 | 10029701 |
| K95-072/1 | 72 | 84 | 7 | 6 | 5 | NB9001 | 10029702 |
| K95-072/2 | 72 | 82 | 6 | 5 | 4.5 | NB9001 | 10029703 |
| K95-075 | 75 | 100 | 13 | 12 | 7 | NB9001 | 10029705 |
| K95-075/1 | 75 | 90 | 8.5 | 7.5 | 5.5 | NB9001 | 10029706 |
| K95-078 | 78 | 86 | 9 | 8 | 4 | NB9001 | 10029707 |
| K95-080 | 80 | 100 | 11 | 10 | 7 | NB9001 | 10029708 |
| K95-082 | 3,25 | 3,75 | 0,414 | 0,37 | 0,2 | NB9001 | 10029710 |
| K95-130 | 130 | 150 | 11 | 10 | 7 | NB9001 | 10029713 |
| K95-135 | 135 | 150 | 11 | 10 | 5.5 | NB9001 | 10029715 |
| K95-220 | 220 | 250 | 16 | 15 | 7.5 | NB9001 | 10029717 |
| K95-230 | 230 | 270 | 21 | 20 | 10 | NB9001 | 10029718 |
| K95-290 | 290 | 330 | 21 | 20 | 10 | NB9001 | 10029719 |
