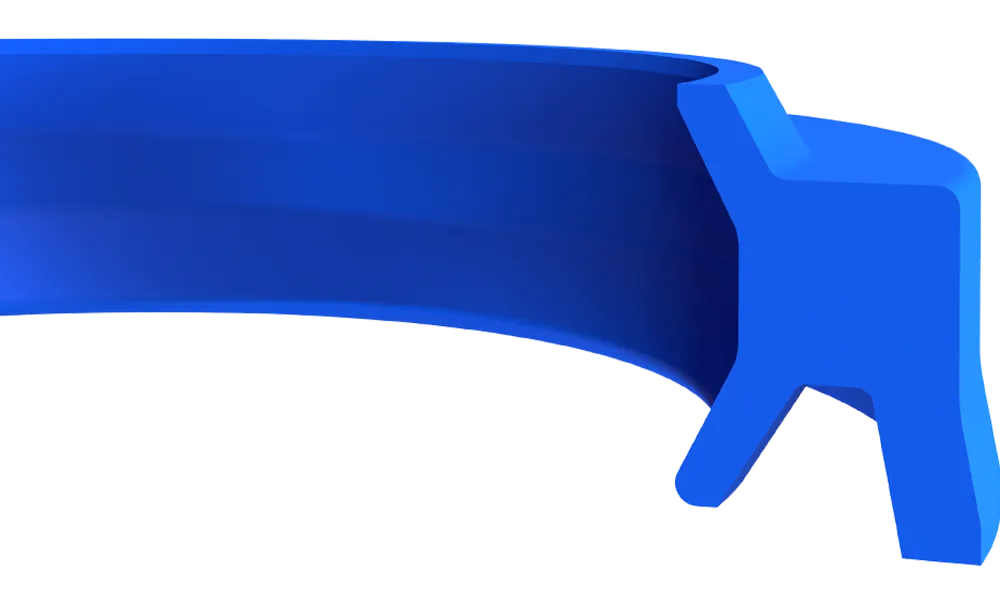

K52 Pneumatic Wiper Rod Seal
K52 pneumatic rod seal is a single acting sealing element that can perform both functions together with its dust lip preventing that foreign particles from outer environment penetrate in the cylinder and the nutring structure that provides sealing.
Technical details & request a quoteAdvantages
- Superior wiping performance
- Superior sealing performance
- Low friction
- Small housing dimensions
- High tear strength
Applications
- Short stroke pneumatic cylinders
- Recommended for use in cylinders according ISO 6432, 21287.
Standard Sizes
31 sizes
| PRODUCT | D (f9) | D (H11) | D1 (+0.2/-0) | L (+0.2/-0) | L1 | H | MATERIAL | KASTAŞ CODE |
|---|---|---|---|---|---|---|---|---|
| K52-003 PU | 3 | 5.6 | 4.6 | 2.7 | 3.2 | 2.8 | PU9201 | 10021758 |
| K52-004 | 4 | 8.2 | 6.5 | 3 | 4.8 | 4 | NB9001 | 10021760 |
| K52-004 PU | 4 | 8.2 | 6.5 | 3 | 4.8 | 4 | PU9201 | 10021763 |
| K52-004/1 | 4 | 7 | 5.6 | 2.7 | 3.2 | 2.8 | NB9001 | 10021764 |
| K52-004/1 PU | 4 | 7 | 5.6 | 2.7 | 3.2 | 2.8 | PU9201 | 10021765 |
| K52-005 | 5 | 8 | 6.6 | 2.7 | 3.2 | 3 | NB9001 | 10021767 |
| K52-005 PU | 5 | 8 | 6.6 | 2.7 | 3.2 | 3 | PU9201 | 10021768 |
| K52-006 | 6 | 11.2 | 9 | 4 | 5.2 | 5 | NB9001 | 10021769 |
| K52-006 PU | 6 | 11.2 | 9 | 4 | 5.2 | 5 | PU9201 | 10021771 |
| K52-006/1 PU | 6 | 9 | 8.1 | 2.7 | 3.2 | 2.8 | PU9201 | 10021773 |
| K52-008 | 8 | 14.2 | 12 | 4 | 5.2 | 5 | NB9001 | 10021775 |
| K52-008 PU | 8 | 14.2 | 12 | 4 | 5.2 | 5 | PU9201 | 10021778 |
| K52-008/1 PU | 8 | 11.5 | 10.1 | 3 | 4 | 3.2 | PU9201 | 10021780 |
| K52-010 | 10 | 16.2 | 14 | 4.5 | 6 | 5.5 | NB9001 | 10021783 |
| K52-010 PU | 10 | 16.2 | 14 | 4.5 | 6 | 5.5 | PU9201 | 10021786 |
| K52-010/1 PU | 10 | 14 | 12.6 | 3.4 | 4.5 | 3.7 | PU9201 | 10021789 |
| K52-012 | 12 | 16.5 | 13.7 | 3.7 | 4.8 | 4 | NB9001 | 10021791 |
| K52-012 PU | 12 | 16.5 | 13.7 | 3.7 | 4.8 | 4 | PU9201 | 10021794 |
| K52-012/2 | 12 | 18 | 14.8 | 4 | 6 | 4.8 | NB9001 | 10021799 |
| K52-012/2 PU | 12 | 18 | 14.8 | 4 | 6 | 4.8 | PU9201 | 10021801 |
| K52-014 PU | 14 | 18.5 | 16.1 | 3.7 | 4.8 | 4 | PU9201 | 10021802 |
| K52-016 | 16 | 20.5 | 17.7 | 3.7 | 4.8 | 4 | NB9001 | 10021803 |
| K52-016 PU | 16 | 20.5 | 17.7 | 3.7 | 4.8 | 4 | PU9201 | 10021805 |
| K52-016/1 PU | 16 | 23 | 19 | 4.2 | 6.2 | 6 | PU9201 | 10021808 |
| K52-018 PU | 18 | 22.5 | 19.7 | 3.7 | 4.8 | 4 | PU9201 | 10021809 |
| K52-020 | 20 | 25 | 22.2 | 4.15 | 5.2 | 4.6 | NB9001 | 10021810 |
| K52-020 PU | 20 | 25 | 22.2 | 4.15 | 5.2 | 4.6 | PU9201 | 10021812 |
| K52-020/1 PU | 20 | 25 | 22.2 | 3.2 | 4.6 | 4.4 | PU9201 | 10021814 |
| K52-025 | 25 | 30 | 26.9 | 4.15 | 5.2 | 4.6 | NB9001 | 10021815 |
| K52-025 PU | 25 | 30 | 26.9 | 4.15 | 5.2 | 4.6 | PU9201 | 10021817 |
| K52-030 PU | 30 | 35.5 | 31.9 | 4.55 | 6 | 5 | PU9201 | 10021819 |
